1310nm/1550nm laser diode bob T1.25G/R2.5G SC/APC G-PON ONU BOSA
1310nm/1550nm laser diode bob T1.25G/R2.5G SC/APC G-PON ONU BOSA

1310nm/1550nm laser diode bob T1.25G/R2.5G SC/APC G-PON ONU BOSA

Model NO.
BOB-OFD-11
Price:
USD 8.00-9.50 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
150000 piece / Month
Country of Origin:
For Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB LASER
  • Model Number:BOB-OFD-11
  • Wavelength:1310nm,1550nm
  • Type:laser diode
  • Application:FTTH FTTB FTTC
  • Connector:SC/APC
  • Color:Yellow
  • Fiber Type:Single Fiber Single Mode
  • feature:G-PON ONU

.jpg

3_01

Product Description

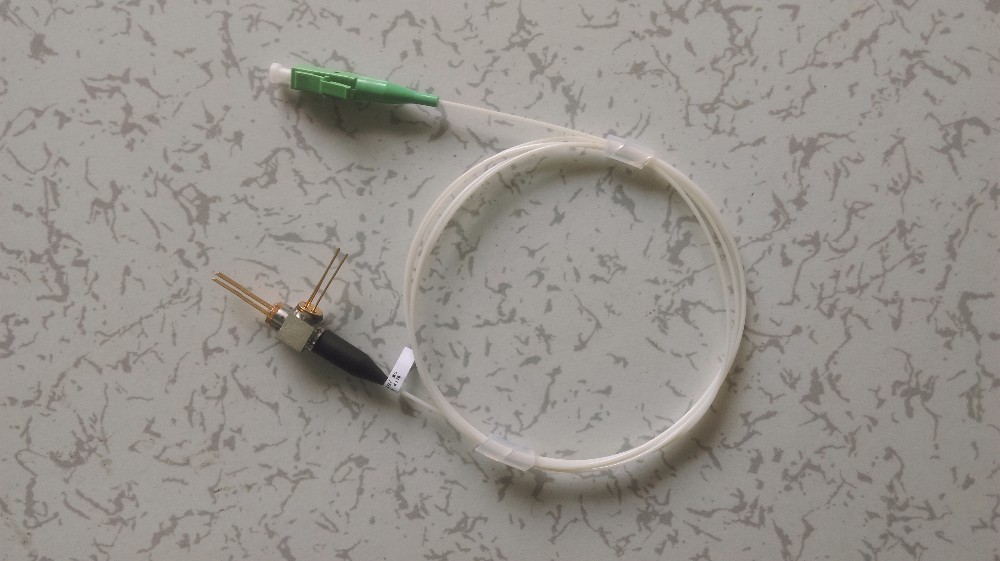

1310nm/1550nm laser diode bob T1.25G/R2.5G SC/APC G-PON ONU BOSA




Description

It is a G-PON ONU BOSA module . This module contains a 1310nm LD and 1490nm continuous mode APD-TIA divided by WDM filter with single mode fiber. It’s suitable for high performance G-PON ONU application. The BOSA module isin full compliance BOSA to C+ grade based with the ITU-T G984.5 .



Features

Low threshold current

High output power

High sensitivity

Long history of proven reliability

Qualified as per intent of ITU-T G984.5



Applications

T1310/R1490 T1.25G/R2.5G G-PONONU

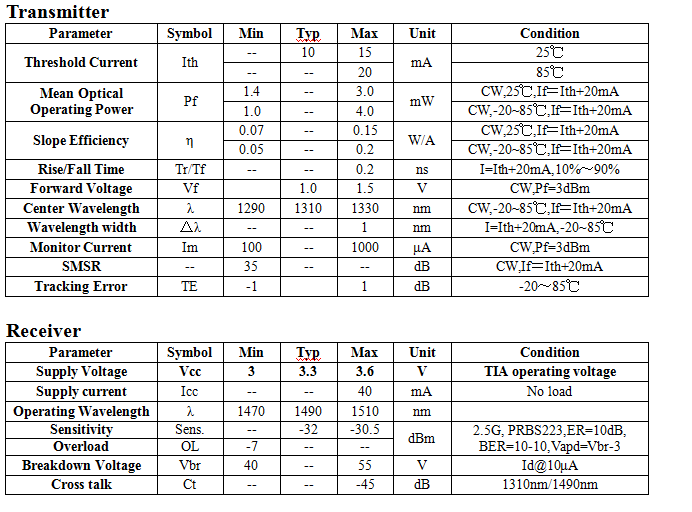

Optical & Electrical Characteristics



Order Information

GPB-D311P2-A552X

GP

B

P

TX

RX

Wavelength

Bandwidth

Power

Wavelength

Data rate

Connector

G-Pon

BOSA

PIN

D31:1310nm

1:1.25G

P2:>2mW

A55:1550nm

2:2.5G

SA:SC/APC

SU:SC/UPC
