Model NO.
BOB-OFD-04
Price:
USD 1.00-500.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Month
Country of Origin:
GZ
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB LASER
  • Max. Reverse Current:10 UA
  • Max. Forward Voltage:1.0V
  • Package Type:Through Hole
  • Type:Laser Diode
  • Max. Forward Current:150mA
  • Max. Reverse Voltage:0~1000V
  • Model Number:BOB-OFD-04
  • Chip Brand:Imported
  • Bandwidth:2.5G-10G
  • Shape:4pin
  • Application:CATV/GSM/RF
  • Chip:DFB
  • Wavelength:1310nm,1550nm
  • Power Range:1mW,2mw,3mw,1-10mw ,1-8mw

.jpg

3_01

Product Description

 -1.jpgBOB-OFD-10-03 (2).jpg

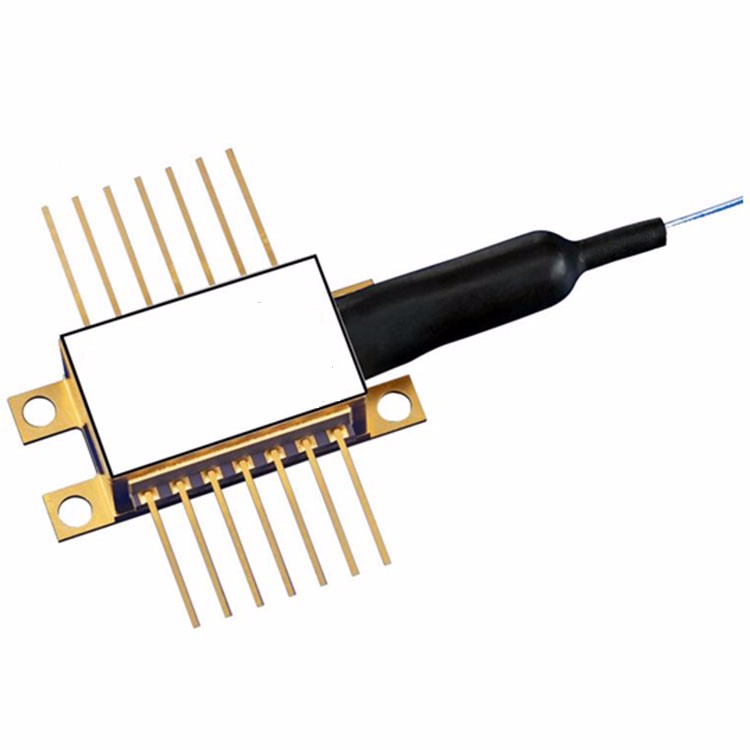

1310nm DFB 14-pin LD 2.5G 10mW

InGaAs Fiber Pigtailed Detector

Features:High linearity high power MQW DFB LD chip
                Built-in isolator, TEC, hermistor and Monitor PD
                Optimized for 2.5 Gb/s Modulation Rates
                14-pin butterfly cooled package
                single mode FC/APC connector or customized
                Max output power: 32mW

Applications:CATV forward-path
                       1310nm broadcast and point-to-point applications

                       Absolute Maximum Ratings

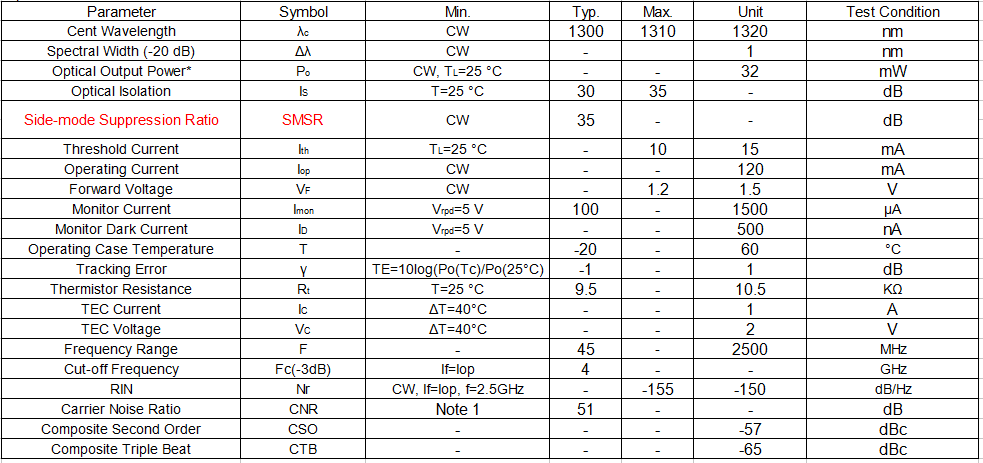

Optical & Electrical Characteristics



Note 1: If=Iop, Optical Modulation, Index=3.2%/channel (minimum),60 PAL-D unmodulated carries (47 to 550MHz), 10km single mode fiber, -1dBm received power, Receiver responsivity=0.85A/W.
 If=Iop, Optical Modulation Index=3.2%/channel (minimum), CNR, CSO, CTB tested value at worst case over all test frequencies. NTSC 120ch., 10km single mode fiber, -1dBm received power, Receiver responsivity=0.85A/W
