808nm 8000mw laser diode
808nm 8000mw laser diode

808nm 8000mw laser diode

Model NO.
BOB808T8000
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Max. Forward Voltage:2V
  • Package Type:Surface Mount
  • Type:Laser Diode
  • Max. Forward Current:8A
  • Model Number:BOB808T8000

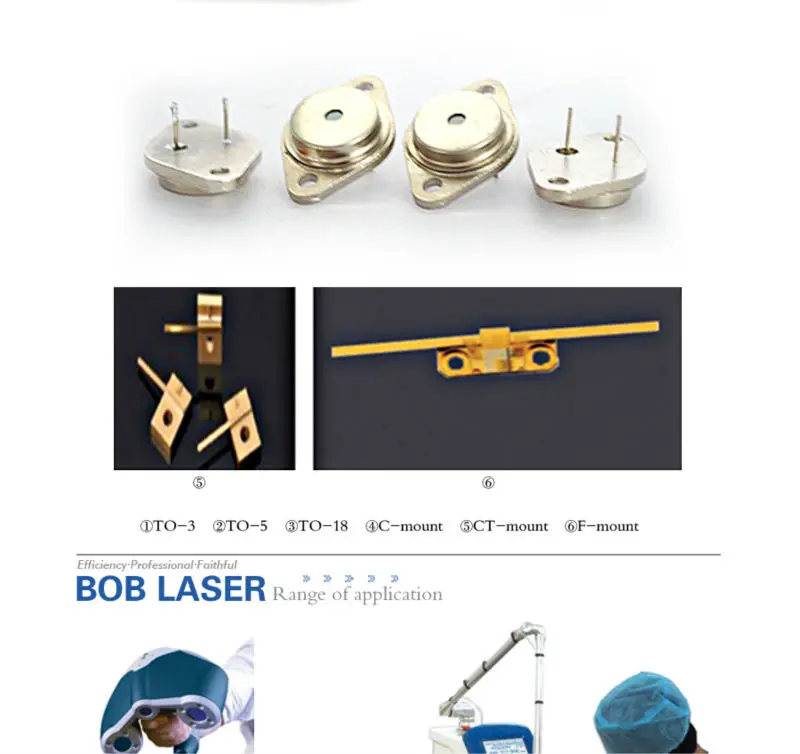

  • package:TO-18,TO-3,TO-5,C-Mount,CT-Mount,F-Mount,CS-Mount
  • power:200mw,300mw,500mw,1w,2w,3w,5w,8w,10w,15w
  • wavelength:808nm
  • application:Solid-state laser pumping,Touch Screen,Medical usage

                                                                 808nm 8000mw laser diode



Application:


Solid-state laser pumping
Medical usage
Beacons and Illumination
Free-space communication
Infrared light sources

Laser beauty machine

Touch Screen





BOB808T8000  808nm 8000mw laser diode TO-3,C-Mount,CT-Mount,F-Mount





Parameter

Value

CWoutput power (mW)

8000

Peak wavelength (nm)

808±5

Spectral width (nm)

≤5

Threshold current (A)

≤1.1

Operating current (A)

≤8

Operating voltage (V)

1.6~2.2

Slope efficiency (W/A)

≥0.9

Beam divergence θ⊥×θ (deg.)

12/40

Wavelength temperature coefficient (nm/°C)

  0.3

  Emitting area (μm)

 200×1

  Serial resistance ()

  ≤1.5

Lifetime(h)

10000










Our company:

We company has passed ISO9001, European CE certified, RoHS certification of the European environmental protection,

the U.S. FDA, Japan BOB brand in the international community gained a high reputation in the market.







if you want konw more.  You can leave a message to me.







this our company's website http://boblaserdiode.en.alibaba.com/
