Model NO.
Laser Diode
Price:
USD 1.00-500.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Month
Country of Origin:
GZ
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB LASER
  • Max. Reverse Current:10 UA
  • Max. Forward Voltage:1.0V
  • Package Type:Surface Mount
  • Type:Laser Diode
  • Max. Forward Current:150mA
  • Max. Reverse Voltage:0~1000V
  • Model Number:Laser Diode



.jpg



Product Description

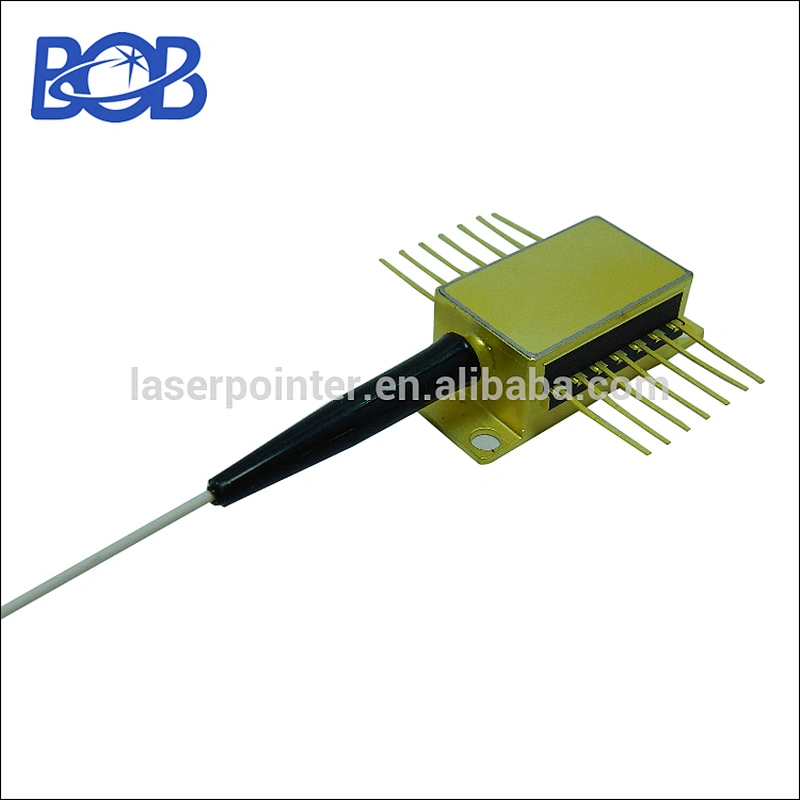

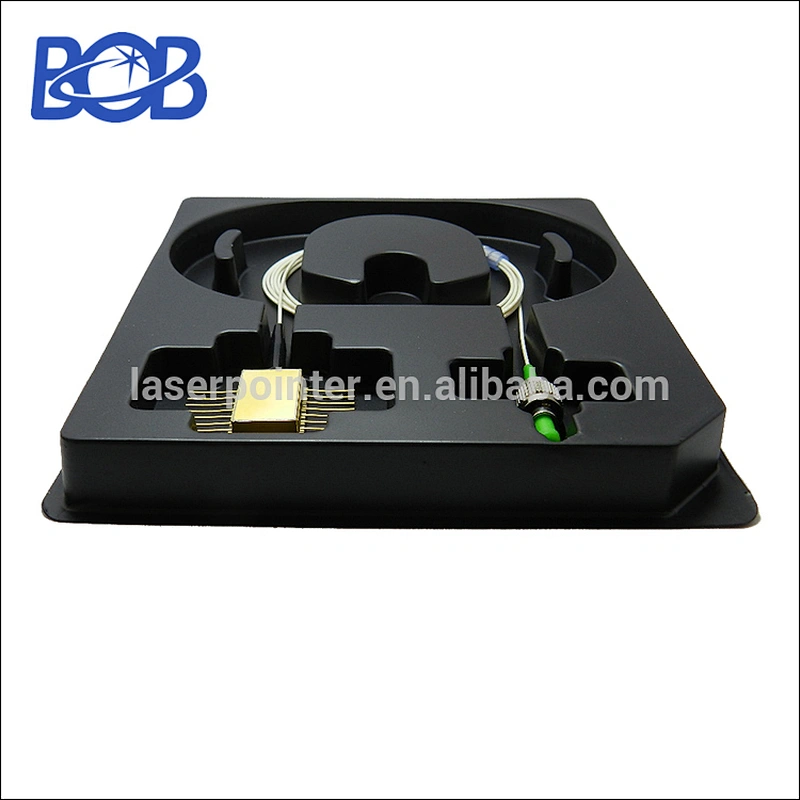

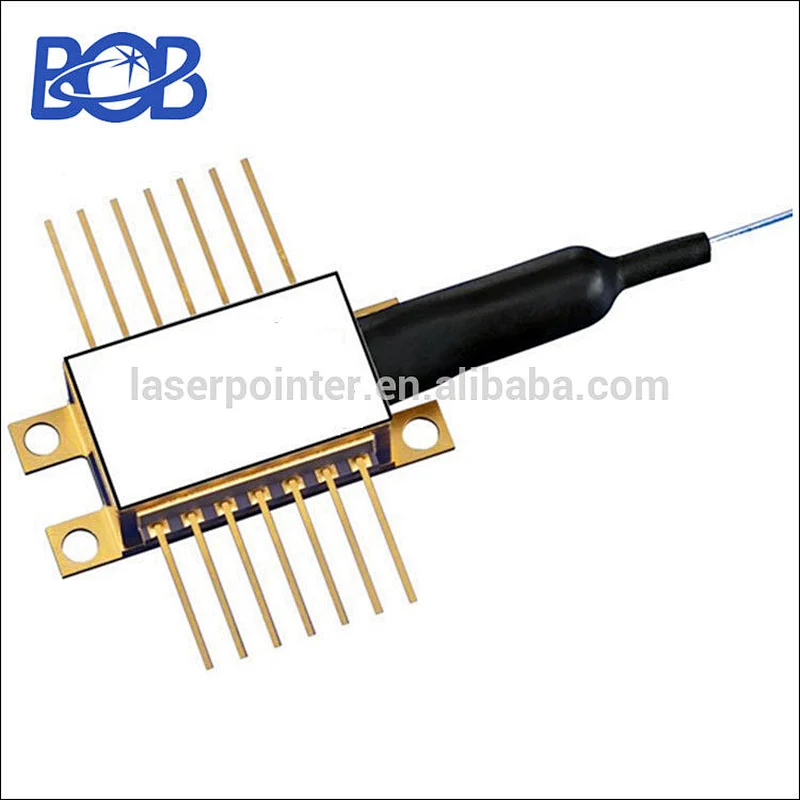

 1550nm/1310nm DFB fiber butterfly coupled laser diode

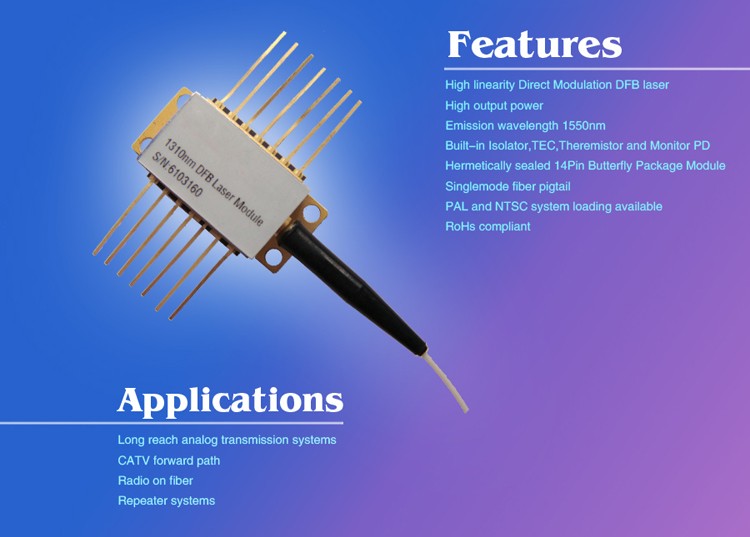

Feature



1.High linearity Direct Modulation DFB laser

2.High output power

3.Emission wavelength 1550nm

4.Built-in Isolator,TEC,Theremistor and Monitor PD

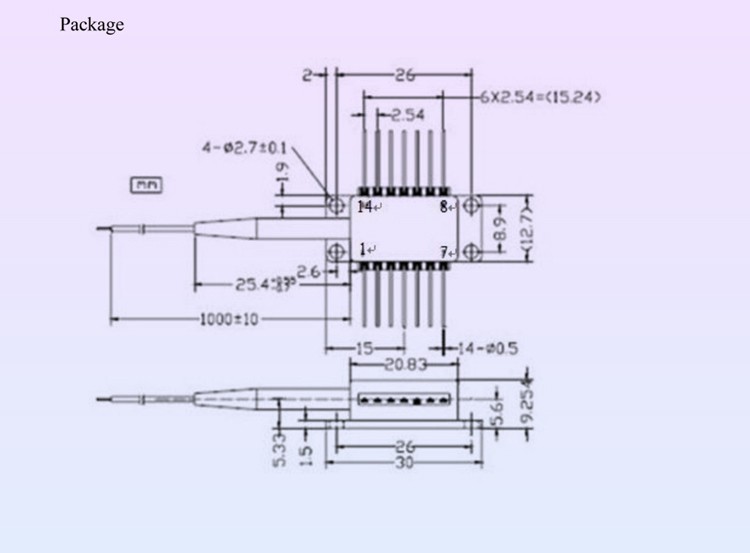

5.Hermetically sealed 14Pin Butterfly Package Module

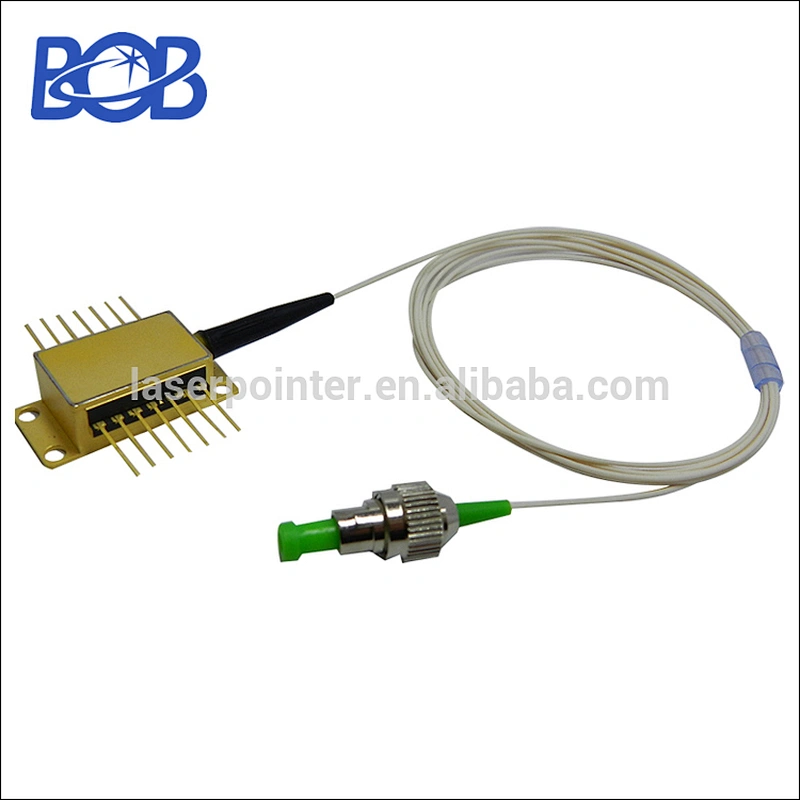

6.Singlemode fiber pigtail

7.PAL and NTSC system loading available

8.RoHs compliant



Application



1.Long reach analog transmission systems

2.CATV forward path

3.Radio on fiber

4.Repeater systems






Related Products
Application :CATV/GSM/RF



Application :FTTH/Digital


Application :OTDR


Application :Instruments and Meters

Contact us
Our Services

We specialize in this field for 20 years, with best servise and very rich experience, no matter pre-sales or after-sales, we can provide very professional help in your project. Choose us, what we can provide not only the best quality and competitive price, but also:
1, Professinal custom-made product.
1, OEM support.
2, Low MOQ Low price from a professinal factory.
3, Fast delivery, normaly we can ship it in two days.
4, Provide sample order for testing.
