Model NO.
BOB405T200-L
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Max. Reverse Current:standard
  • Max. Forward Voltage:standard
  • Package Type:Through Hole
  • Type:Laser Diode
  • Max. Forward Current:standard
  • Max. Reverse Voltage:standard
  • Model Number:BOB405T200-L
  • Name:laser diode
  • package:laser module
  • power:200mw
  • wavelength:405nm
  • application:CTP


Product Description

The output power (the CW) MW

 150



Center wavelengthNM  405
Center wavelength shift NM+-5
 Half peak width (FWHM) NM <3
 Wavelength temperature coefficient  ~0.3
 The fiber core diameter UM 40/50/60
 Numerical aperture  0.12/0.22
 Connector type  FC
 Working current mA 170
 The threshold current mA

 30

Conversion efficiency%

17

Oblique efficiencymW/mA

1.2

Working voltageV

5.3

Working temperatureC10~30
Storage temperatureC-20~+80
lifeH>10000
sizemm7x7x25




Contact us
Our Services


Company Information


BOB LASER CO.,LTD. in 2007 relying on the support of the Chinese Academy of Sciences Institute of Laser technology and the establishment of high-tech enterprises.

The company mainly produces the following product package of thesemiconductor laser: 405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm,830nm, 850nm, 915nm, 940nm, 980nm, 1064nm, 1310nm, 1550nm, various power specifications (1mW to 10W), TO -5 TO-3,C-Mount as well as CT-Mount, the F-Mount and a variety of purposes (communication, pumps, medical and beauty,display, printing, etc.) semiconductor lasers.
The Company has undertaken more than 20 national 836 plan, university laboratories, high-tech industries, the development of specialcountries, ministries, provincial, city research project, was named the National High Technology Research and Development Program of the industrialized bases. The scale and technical level of the laser industry in recent years has been a global leader in products have been exported to80 countries and regions. The company has passed ISO9001, European CE certified, RoHS certification of the European environmental protection, the U.S. FDA, Japan BOB brand in the international community gained a high reputation in the market.



Company Photo


Line of Production

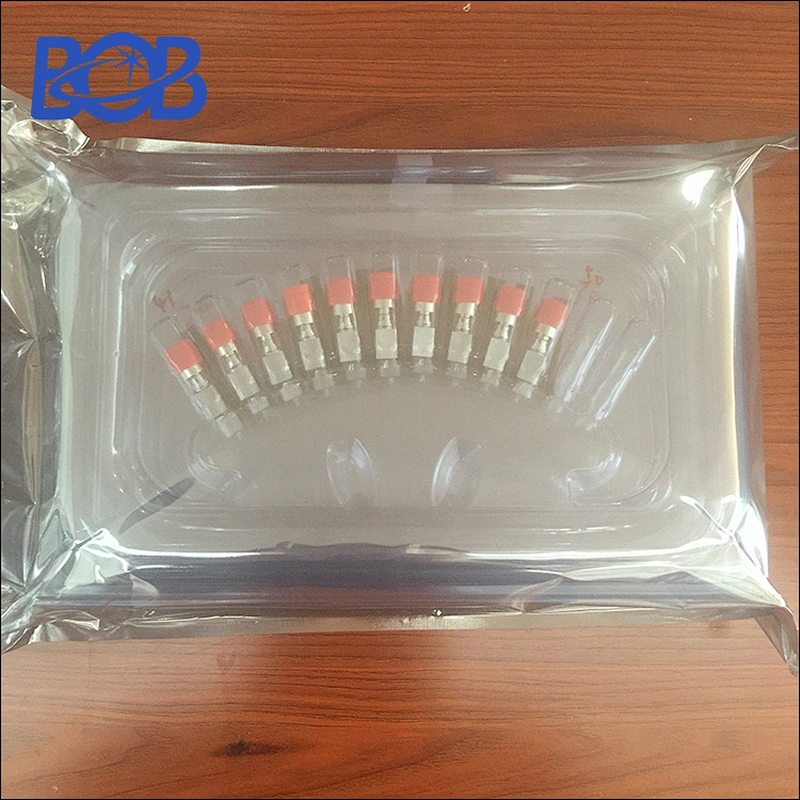

Packaging
