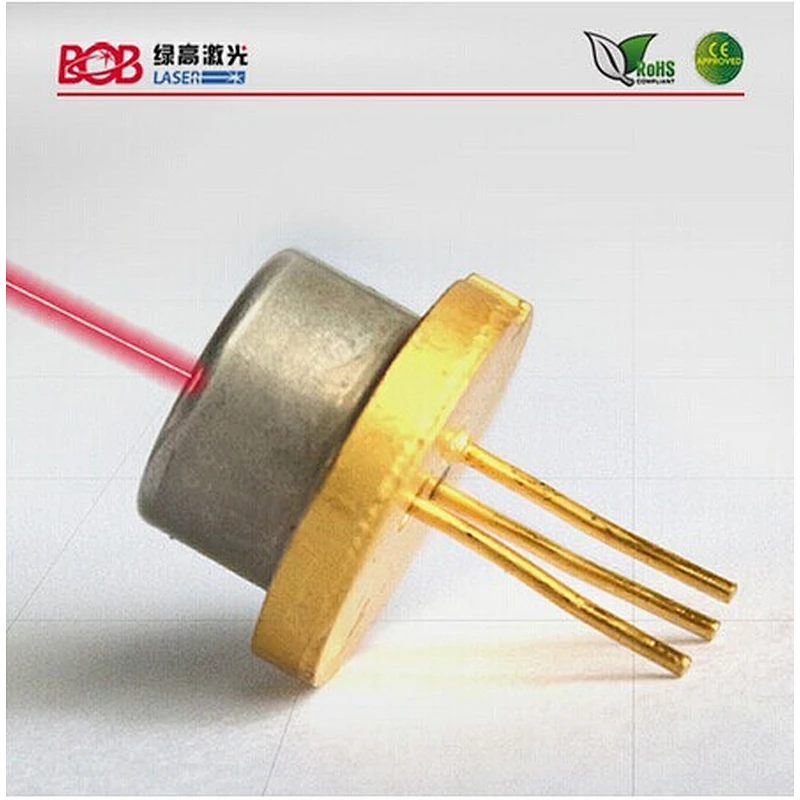

405nm 200mw LD laser diodes
405nm 200mw LD laser diodes

405nm 200mw LD laser diodes

Model NO.
NDV4542VFR
Price:
USD 0.80-1.50 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Package Type:Through Hole
  • Type:Laser Diode
  • Model Number: NDV4542VFR
  • Wavelength:405nm
  • Power:200mw
  • Package:TO-38
  • Application:Indicator, Pointer, DVD, Laser printing
  • Certification:ISO9001, CE, ROHS, FDA, JQA Certification
  • Brand: NICHIA
  • Item: NDV4542VFR
  • Original Place:China
  • Market positioning:Middle and high-end market
  • Product positioning:High-quality, cost-effective

405nm 200mw LD laser diodes

laser diode Application:  Indicator, Pointer, DVD, Laser printing













Product Display:















Product Information:





uv laser diode  Features

1 Maximum optical power output :200 mW(cw)
2  High power (pulse MAX  400mW)
3  Wavelength :TYP=405nm
4  High coupling efficiency.The ellipticity is close to 2.0
5  3.8mm package.TO-18



uv laser diode Absolute Maximum Ratings

    Parameter/Symbol -------Rating/Unit
1)Light output power/cw-----200mw
2)Light output power/pulse--400mw
3)Reverse voltage/VRL-------  2V
4)Case temperature/Tc------- -10~+85
5)Storage temperature/Tstg-- -40~+80



uv laser diode Electrical/optical Characteristics(Tc=25)

  Parameter/-----Symbol-Testconditions--Min/Typ/Max-Unit
1)Threshold current/ith-----cw---------_-_/35_/50_-mA
2)Operating current/iop-cw,po=100mw--_-_/100/130-mA
3)Operating voltage/vop-cw,po=100mw--_-_/4.6/6.0-V
4)Slope efficiency/--h--cw,po=100mw--1.1/1.4/1.9-mw/mA
5)Peak wavelength/--λp--cw,po=100mw--400/405/410-nm
6)Beam divergence angle-cw,po=100mw--_7_/_9_/12_-
7)Beam divergence angle-cw,po=100mw---2_/-0-/2.0

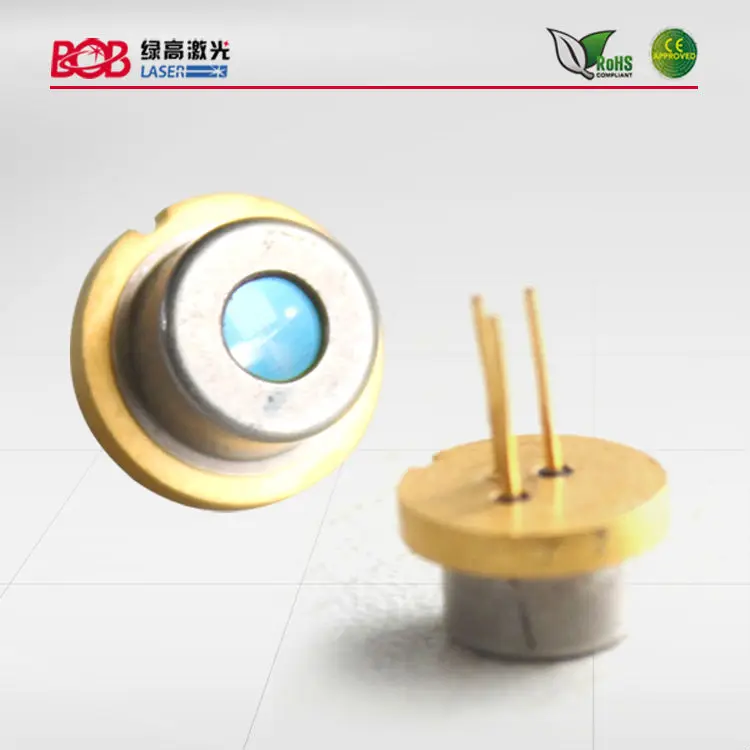

Laser Diode Photo:







Laser Diode Application:









Payment

1. T/T



2. Western Union





Lead Time and Shipping



1. 3 working days after receiving the payment.



2. Via your shipping account (DHL / FEDEX / UPS / TNT )

   Via our shipping account -with good freight



3. We are not responsible for any accidents, delays or other issues caused by the forwarder.



4. Any import fees or charges are the buyer's responsibility.





Warranty



year





Our Service



1. Following up the case, recording the entire process and all the voice from client.

    Solution will be provided within 48 hours.



2. Before or after purchasing, if you have any technical questions,

   please send e-mail to me, we will give you professional reply in time.



3. Online services: SKYPE, mail, message. You could contact us at any time.



4. All products have 1-year warranty.



5. OEM manufacturer.



6. Provide sample order for testing.





Company Profile

We company mainly produces the following product package of the semiconductor laser Diode:

405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm, 830nm, 850nm, 915nm, 940nm, 980nm,

1064nm, 1310nm, 1550nm

various   power specifications from 1mW to 15W

Package: TO-18, TO-5, TO-3, C-Mount, CT-Mount and F-Mount


We company has passed ISO9001, European CE certified, RoHS certification of the European environmental protection,

the U.S. FDA, Japan JQA. BOB brand in the international community gained a high reputation in the market.




Laser Diode Instruction





Operation: Wear the glasses which match the wavelength of laser diode firstly.

And don’t look at the laser lens straight, even without seeing light.

Otherwise it will be bad for our eyes easily.
