Model NO.
BOB635T20
Price:
USD 2.95-3.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Max. Reverse Current:stardard
  • Max. Forward Voltage:2.6V
  • Package Type:Surface Mount
  • Type:Laser Diode
  • Max. Forward Current:60mA
  • Max. Reverse Voltage:stardard
  • Model Number:BOB635T20
  • package:TO-18
  • power:5mw,10mw,20mw,30mw,350mw,500mw
  • wavelength:635nm
  • application:Indicator,Pointer,Scanning,Medical equipment

635nm 15mw/20mw laser diode






Application

Indicator
Pointer

Scanning
Medical photograhy

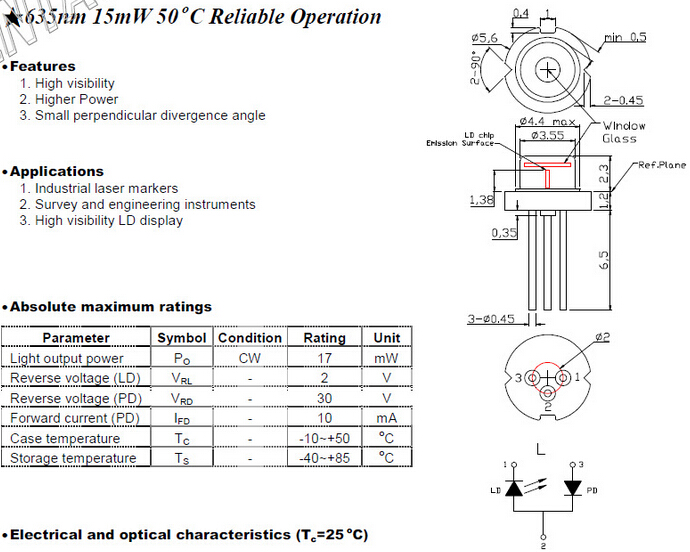

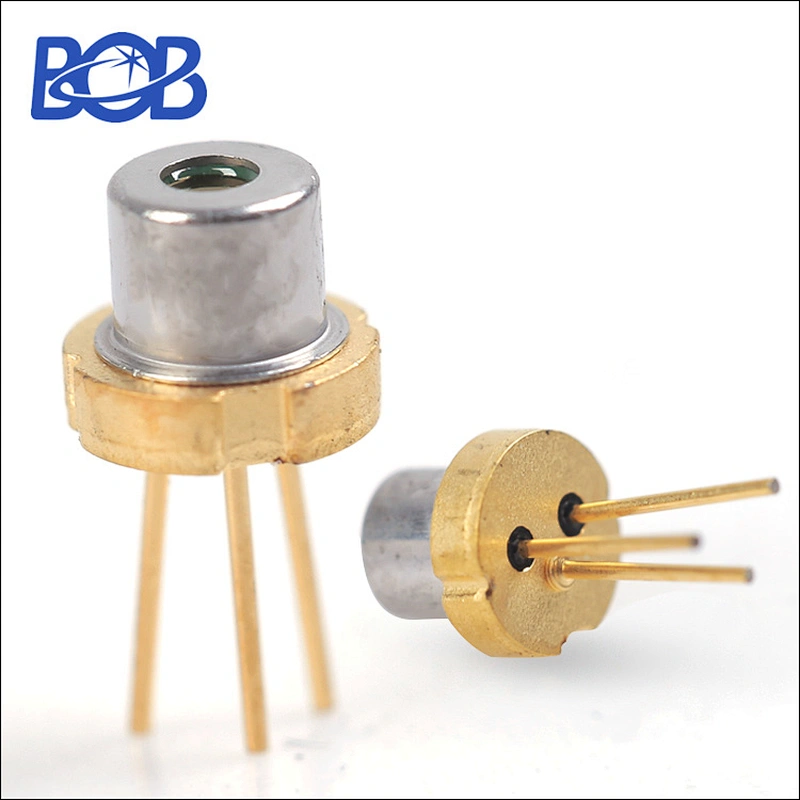

BOB635T20 635nm 20mw laser diode TO-18

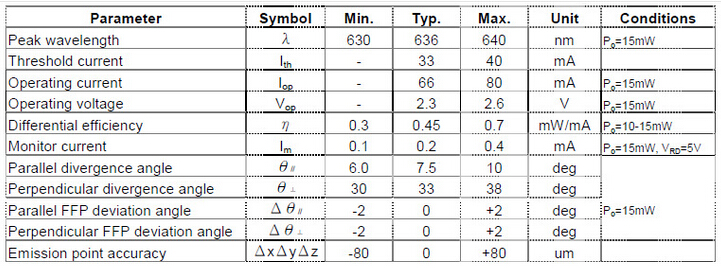

Parameter

Min.

Typ.

Max.

Units

Threshold Current

-

30

40

mA

Operating Current

-

45

60

mA

Operating Voltage

-

2.2

2.6

V

Slop Efficiency

0.3

0.6

-

mW/mA

Monitor Current

0.05

0.15

0.4

mA

Beam Divergence(Parallel)

6

8

12

deg.

Beam Divergence(Perpendicular)

28

33

37

deg.

Lasing Wavelength

630

635

645

nm



if you want konw more.  You can leave a message to me.

this our company's website http://boblaserdiode.en.alibaba.com/

 12345

Our  Product :

We company mainly produces the following product package of the semiconductor laser: 405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm, 830nm, 850nm, 915nm, 940nm, 980nm, 1064nm, 1310nm, 1550nm,various   power specifications (1mW to 10W),TO -5 TO-3,C-Mount as well as CT-Mount,  the F-Mount   and  a  variety  of  purposes (communication, pumps, medical and beauty, display, printing, etc.) .semiconductor lasers.


We company has passed ISO9001, European CEcertified,RoHS certification of the European environmental protection,the U.S. FDA, Japan JQA. BOB brand in the international community gained a high reputation in the market.
