Model NO.
BOB-VFL650-5S
Price:
USD 23.00-24.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Model Number:BOB-VFL650-5S
  • Patent:Appearance Patent
  • Applications:Maintenance in telecom, CATV
  • Operating model:CW and Pulse available
  • Battery life:Up to 60 hours
  • Weight:105g (without battery)
  • Dimension:17 x 162mm
  • Output power: 5mw,10mw,20mw
  • Laser Range:≥5km,≥10km,≥20km
  • Pulse frequency:2Hz to 3Hz
  • Certification:CE RoHS


3_01

Product Description

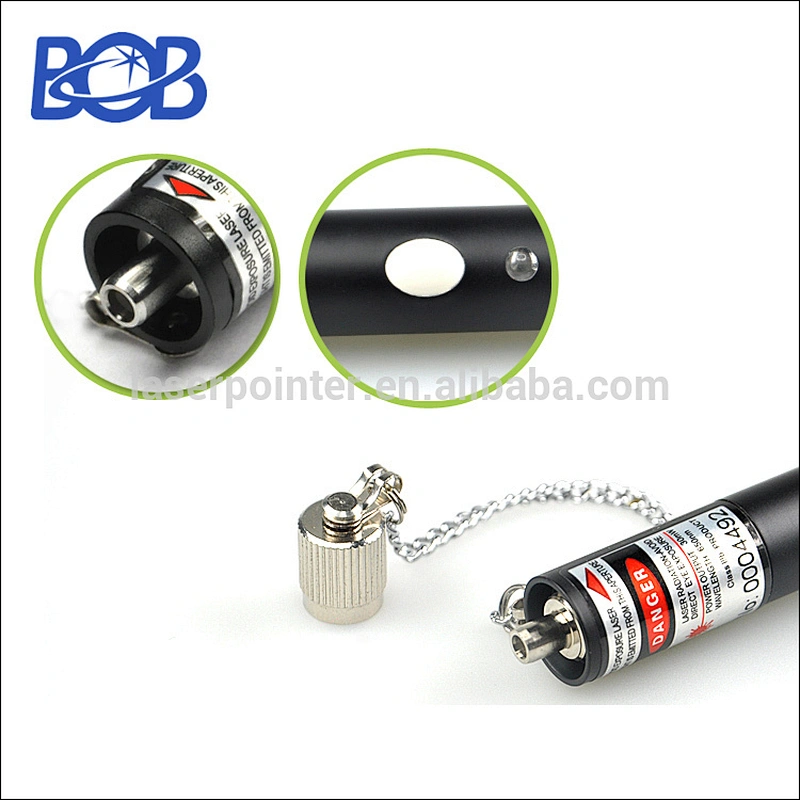

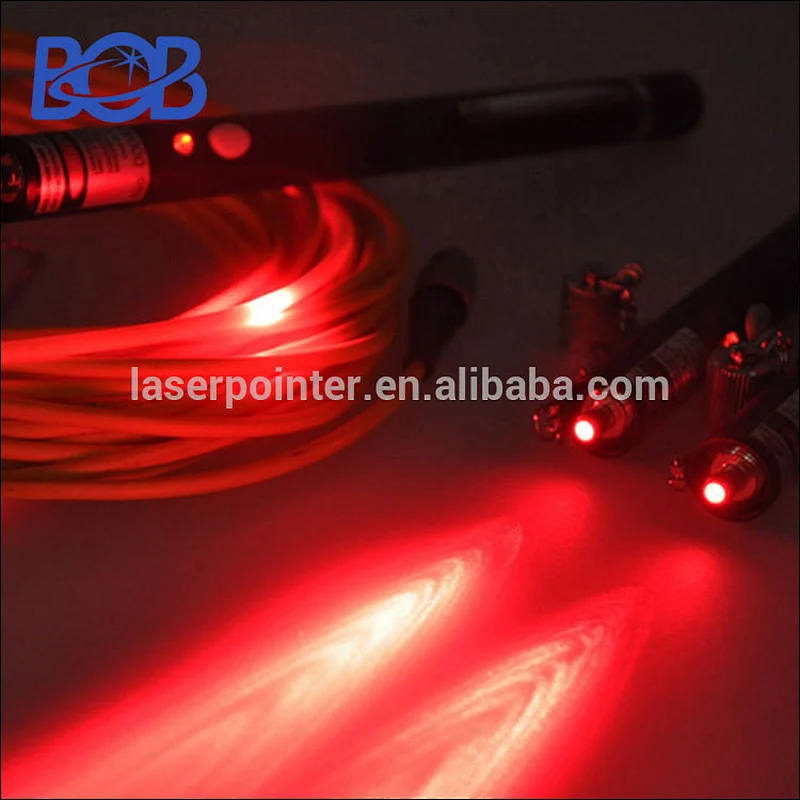

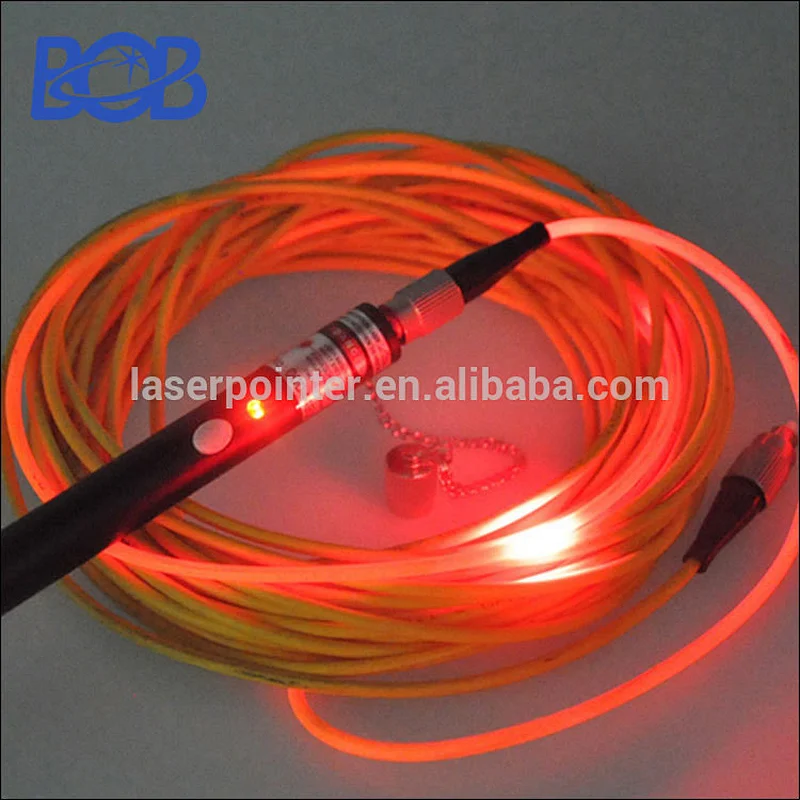

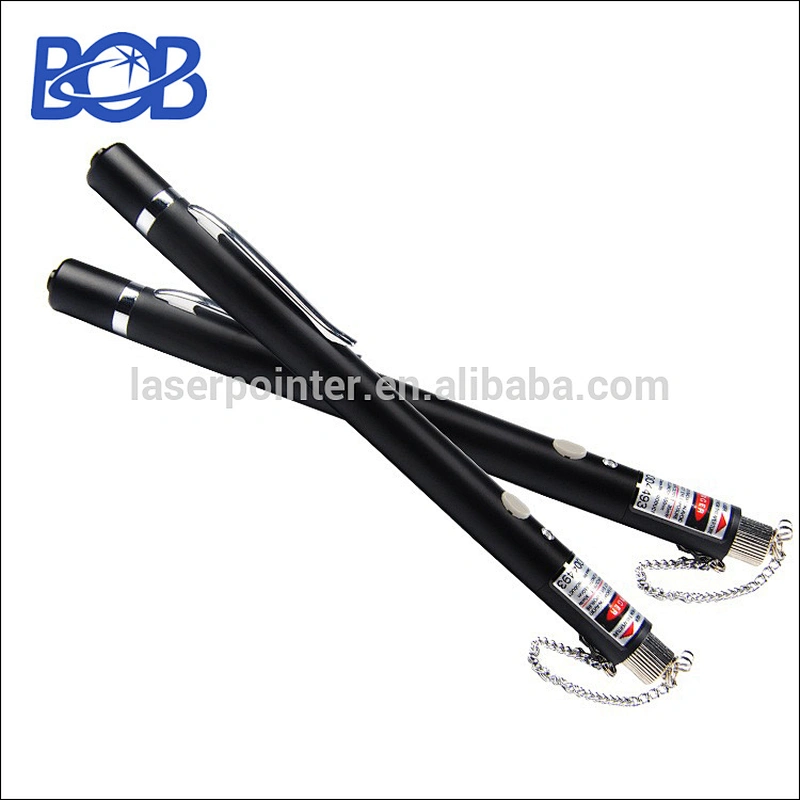

 bob laser exfo otdr Laser Test Pen BOB-VFL650-5S Fiber Optic Visual Fault Locator

Description
The pen- type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. And it is the essential test tool for the FTTH project. This visual fault locator is with so many advantages, such as long woking life, rugged, portable, beautiful appearance and so on. It is the best choice for the field personnel.

Feature

1.2.5mm universal connector,for 1.25mm connectors,FC(male)-LC(Female) adaptor also can be provided on request
2.Operates either in CW or Pulsed mode with constant output power
3.Low battery warning
4.Long battery life (up to 60 hours)
5.Drop-resistant and dust-proof design of laser head
6.Laser case ground design prevents ESD damage
7.Portable and rugged
8.Easy to use

Application

Maintenance in telecom, CATV

Test Lab of optical fibers

Fiber routing and continuity checking in optical networks

Other fiber optic measurements

Funtion

Find breakpoints, poor connections, bending or cracking in fiber optic cables

Find faults in an OTDR dead zone

Is used for end-to-end visual fiber identification.




BOB-VFL650-5S
Brand NameType MateriaWavelengths
BOBMini pen stype High-end imports of Brass650±10nm
Optical Connector TypeOperating ModelPower Supplybattery life
2.5mm,1.25mmCW,Pulse2x"AAA"Long battery life (up to 60 hours)
Output Power5mw10mw20mw
(Laser range)(>5km)(>10km)(>20km)
Optical connector2.5mm universal connector,for 1.25mm connectors, FC(male)-LC(Female) adaptor also can be provided on request
Operating modeOperates either in CW or Pulsed mode with constant output power
