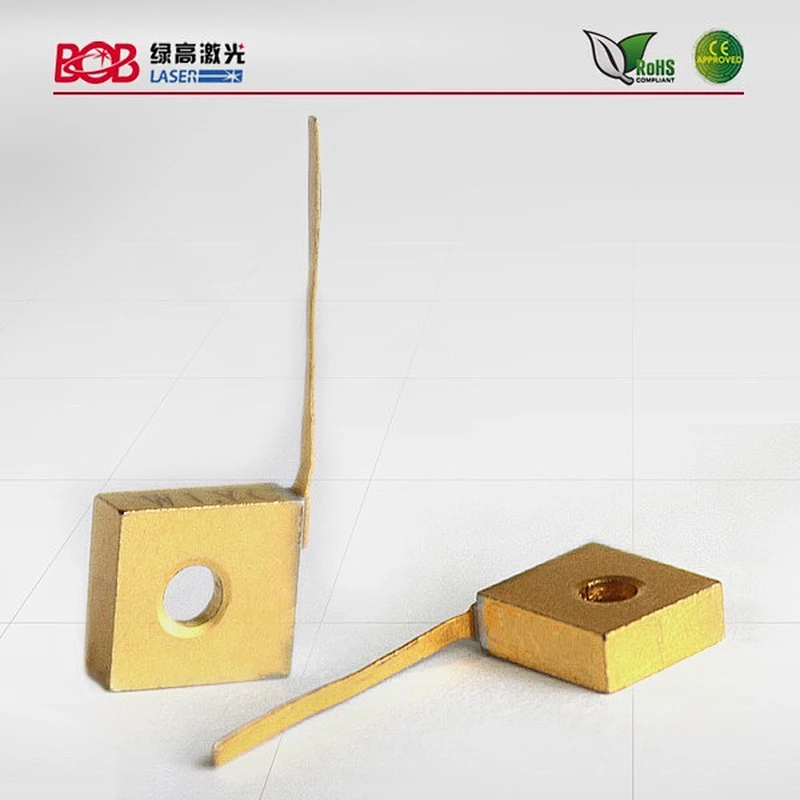

High power 980nm 3w laser diode 3watt C-mount
High power 980nm 3w laser diode 3watt C-mount
High power 980nm 3w laser diode 3watt C-mount
High power 980nm 3w laser diode 3watt C-mount
High power 980nm 3w laser diode 3watt C-mount

High power 980nm 3w laser diode 3watt C-mount

Model NO.
BOB980T3000
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Max. Forward Voltage:2.2V
  • Package Type:Surface Mount
  • Type:Laser Diode
  • Max. Forward Current:0.5A
  • Model Number:BOB980T3000
  • package:C-Mount
  • power:3w
  • wavelength:980nm
  • application:Anti-counterfeit,Money detector,Infrared illumination,Military use



980nm High-Power Laser Diode (BOB980T3000-C)

Features:
-Output power: 3W(CW)
-Variety of stripe width
-Efficient quantum well structure
-TO-3 package or C-Mount Package

Application:
-Solid-state laser pumping
-Medical usage
-Beacons and Illumination
-Free-space communication
-Infrared light sources

ParameterValue
BOB980T3000
CW output power (mW)3000
Peak wavelength (nm)975±10
Spectral width (nm)≤5
Threshold current (A)≤0.8
Operating current (A)≤3.8
Operating voltage (V)≤2.2
Slope efficiency (W/A)≥0.85
Beam divergence θ⊥×θ(deg.)≤40×12  or  ≤12×12
Wavelength temperature coefficient (nm/ºC)0.3
Emitting area (μm)200×1
Serial resistance (Ω)≤0.35
Polarization modeTE
PackageTO-3, , C-Mount









1

 2345

Our  Product :

We company mainly produces the following product package of the semiconductor laser: 405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm, 830nm, 850nm, 915nm, 940nm, 980nm, 1064nm, 1310nm, 1550nm,various   power specifications (1mW to 10W),TO -5 TO-3,C-Mount as well as CT-Mount,  the F-Mount   and  a  variety  of  purposes (communication, pumps, medical and beauty, display, printing, etc.) .semiconductor lasers.


We company has passed ISO9001, European CEcertified,RoHS certification of the European environmental protection,the U.S. FDA, Japan JQA. BOB brand in the international community gained a high reputation in the market.
