High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)
High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)

High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool (BOB-VFL650-3S)

Model NO.
BOB-VFL650-3S
Price:
USD 1.00-50.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Week
Country of Origin:
GZ
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Model Number:BOB-VFL650-3S
  • fiber fault locator:BOB-VFL650-3S
  • Central wavelength:650nm±10nm
  • Emitter type:FP-LD
  • Output power:10mw
  • Optical connector:2.5mm universal connector
  • Operating mode:Both CW and Pulse available
  • Pulse frequency:2Hz to 3Hz / 9Hz
  • Dimension:25 x 152mm
  • Weight:165g (without battery)

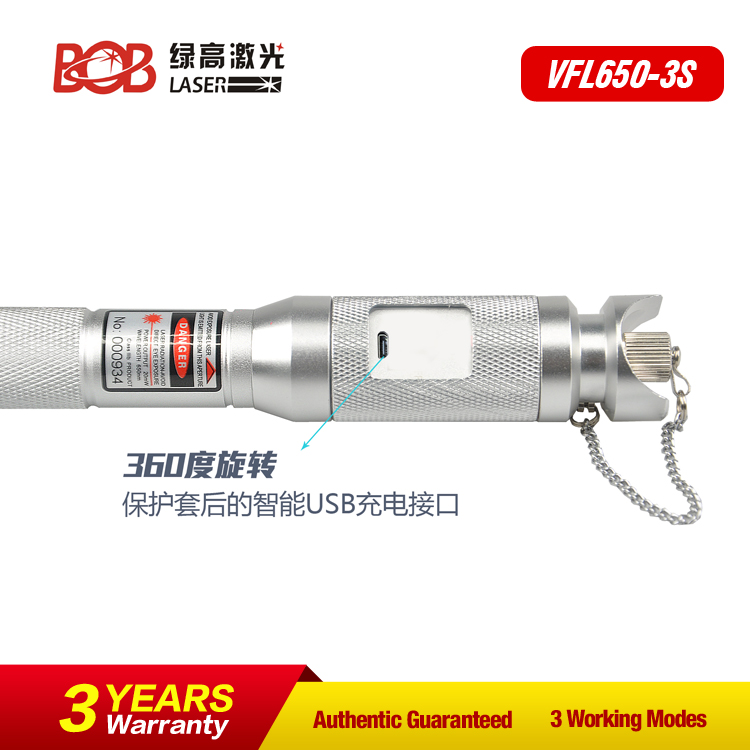

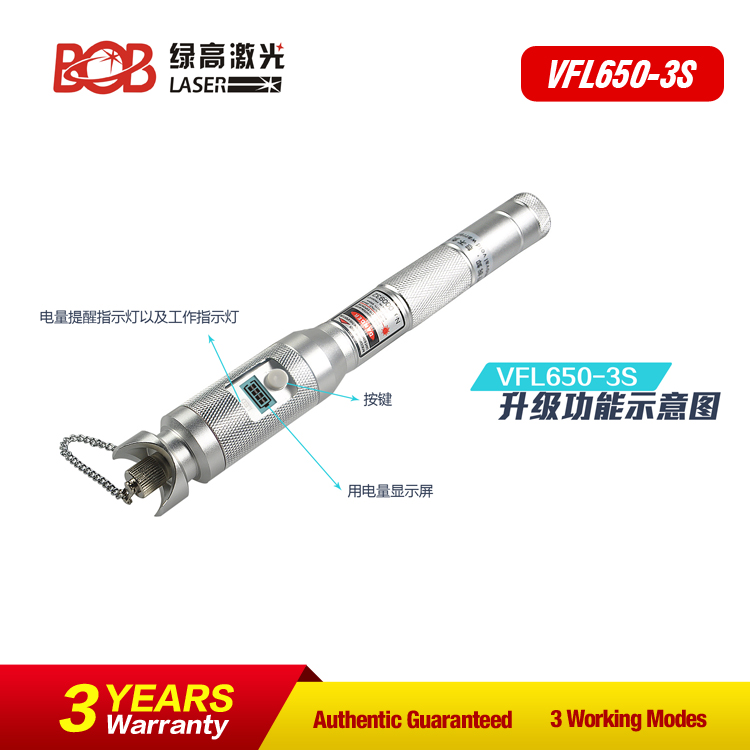

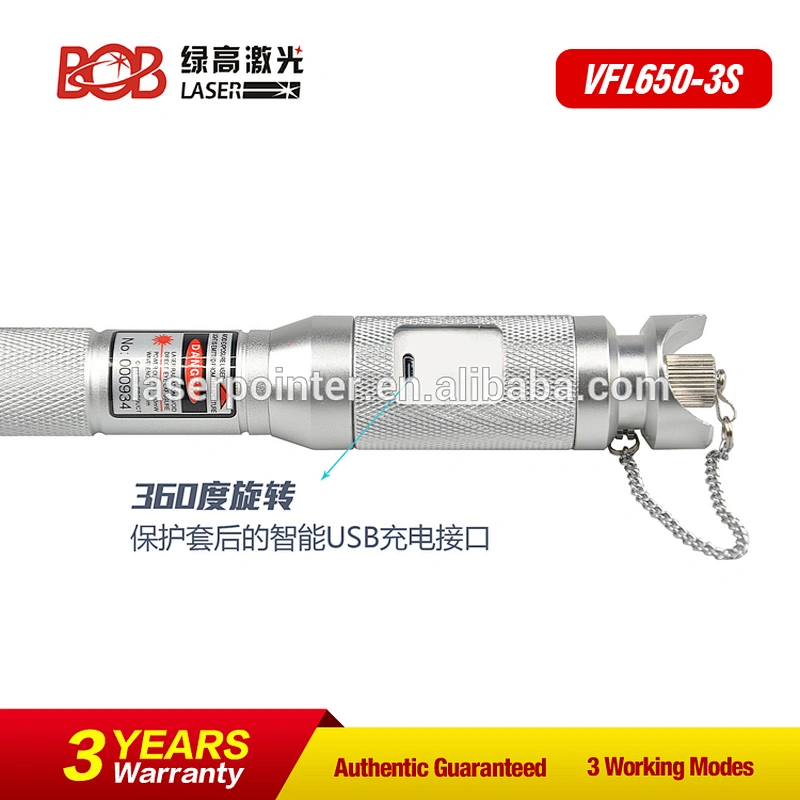

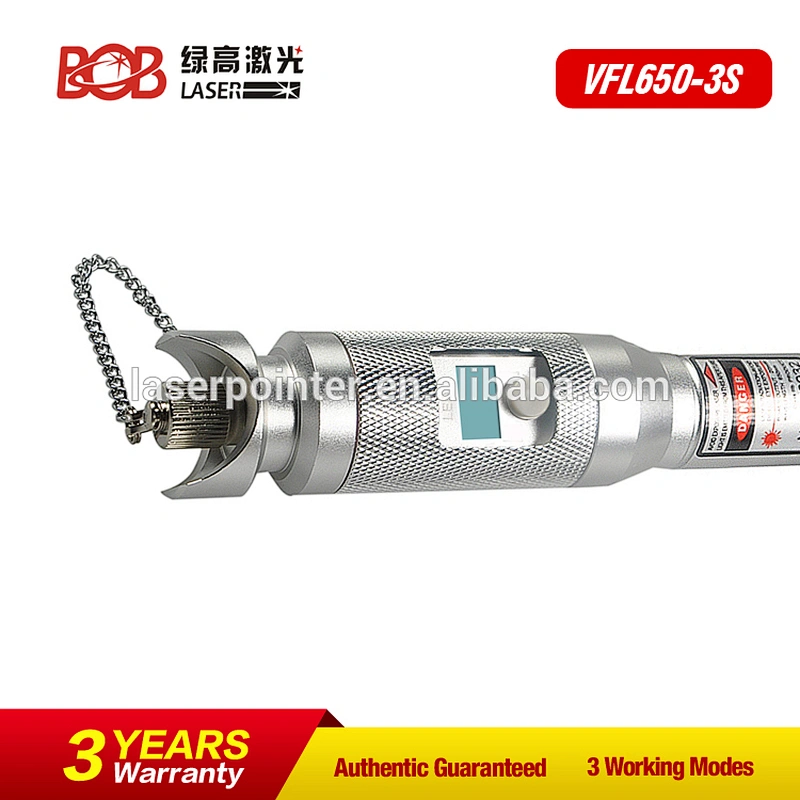

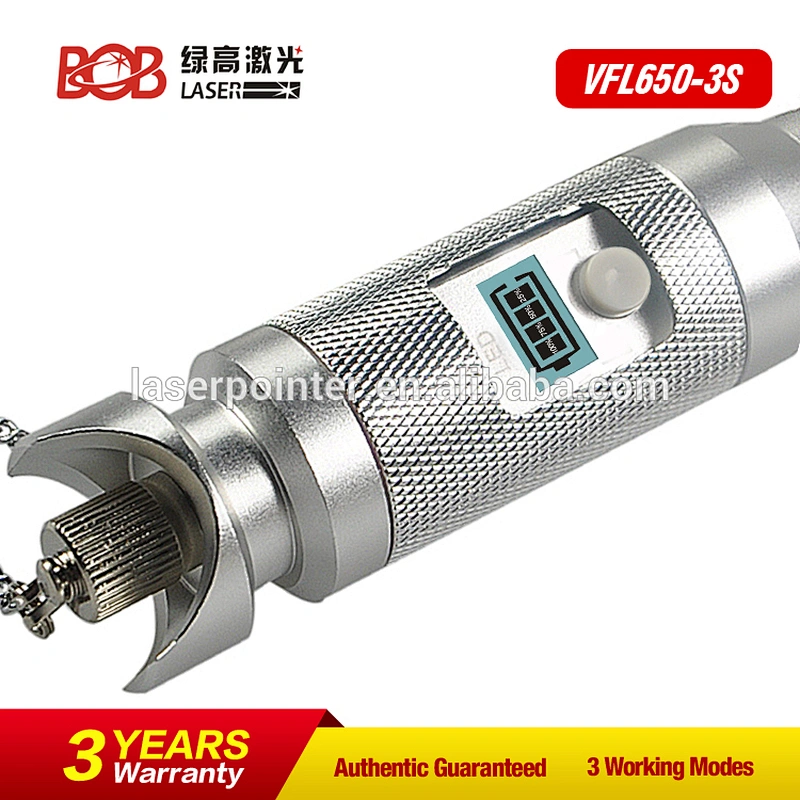

High quality Handheld Optical Fiber Identifier Tester 650nm Fiber Test Tool

         This Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.



Applications

Maintenance in telecom, CATV

Test Lab of optical fibers

Fiber routing and continuity checking in optical networks

Other fiber optic measurements





Features



v 2.5mm universal connector,for 1.25mm connectors,

        FC(male)-LC(Female) adaptor also can be provided on request

v    Operates either in CW or Pulsed mode with constant output power

Low battery warning

Long battery life (up to 60 hours)

Drop-resistant and dust-proof design of laser head

Laser case ground design prevents ESD damage

Portable and rugged

Easy to use



 Specification









Standard Package



Model

Includes

BOB-VFL650-2S

Main unit, User Manual,Individual packing





More Picture

HTB1O_SzKXXXXXbwXXXXq6xXFXXXI040500



0708





Company information:







Bob LASER CO., LTD is a factory specialized in laser sight and a series of laser products. Our products has safe quality and competitive price and complete after-sale service system .
