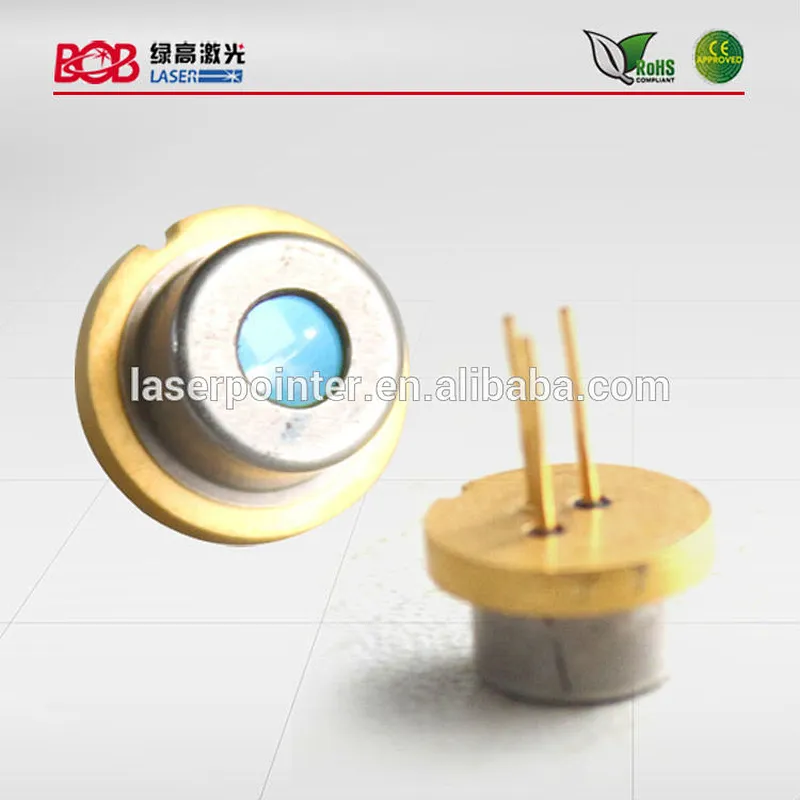

NDV4313 Nichia 405nm 120mw laser diode with Photo Diode
NDV4313 Nichia 405nm 120mw laser diode with Photo Diode

NDV4313 Nichia 405nm 120mw laser diode with Photo Diode

Model NO.
BOB405T120
Price:
USD 1.00-55.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:JP
  • Brand Name:NICHIA
  • Max. Reverse Current:standard
  • Max. Forward Voltage:6V
  • Package Type:Surface Mount
  • Type:Laser Diode
  • Max. Forward Current:150mA
  • Max. Reverse Voltage:2V
  • Model Number:BOB405T120
  • Name:NDV4313 Nichia 405nm 120mw laser diode with Photo Diode
  • package:TO-18 5.6mm
  • power:120mw
  • wavelength:405nm
  • application:Indicator, Pointer, DVD, Laser printing
  • Color:blue violet
  • Operating temperature:-10~+55 degree
  • Storage Temperature:-45~+85 degree
  • Type:laser diode
  • Certification:ISO9001, CE, RoHS, JQA, FDA

NDV4313 Nichia 405nm 120mw laser diode with Photo Diode







Application:

Indicator

Pointer

DVD

Laser printing



 BOB405T120  405nm 120mw laser diode TO-18

Item

Condition

Symbol

Min

Typ.

Max

Unit

Optical Output Power

CW

Po

-

-

120

mW

Peak Wavelength

Po=120mW

λp

400

405

410

nm

Threshold Current

CW

Ith

-

35

50

mA

Operating Current

Po=120mW

Iop

-

120

150

mA

Slope Efficiency

CW

η

1.2

1.4

1.9

W/A

Operating Voltage

Po=120mW

Vop

-

4.8

5.5

V

FWHN Beam

Divergence

Po=120mW

θ//

7.0

9.0

12.0

deg

θ⊥

15.0

19.5

23.0

deg

Emission Point

Accuracy

Angle

Po=120mW

θ//

-2.0

-

2.0

deg

θ⊥

-2.5

-

2.5

deg

Monitor Current

Po=120mW

IM

0.2

0.4

0.7

mA



if you want konw more.  You can leave a message to me.

this our company's website http://boblaserdiode.en.alibaba.com/

 12345

Our  Product :

We company mainly produces the following product package of the semiconductor laser: 405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm, 830nm, 850nm, 915nm, 940nm, 980nm, 1064nm, 1310nm, 1550nm,various   power specifications (1mW to 10W),TO -5 TO-3,C-Mount as well as CT-Mount,  the F-Mount   and  a  variety  of  purposes (communication, pumps, medical and beauty, display, printing, etc.) .semiconductor lasers.


We company has passed ISO9001, European CEcertified,RoHS certification of the European environmental protection,the U.S. FDA, Japan JQA. BOB brand in the international community gained a high reputation in the market.
