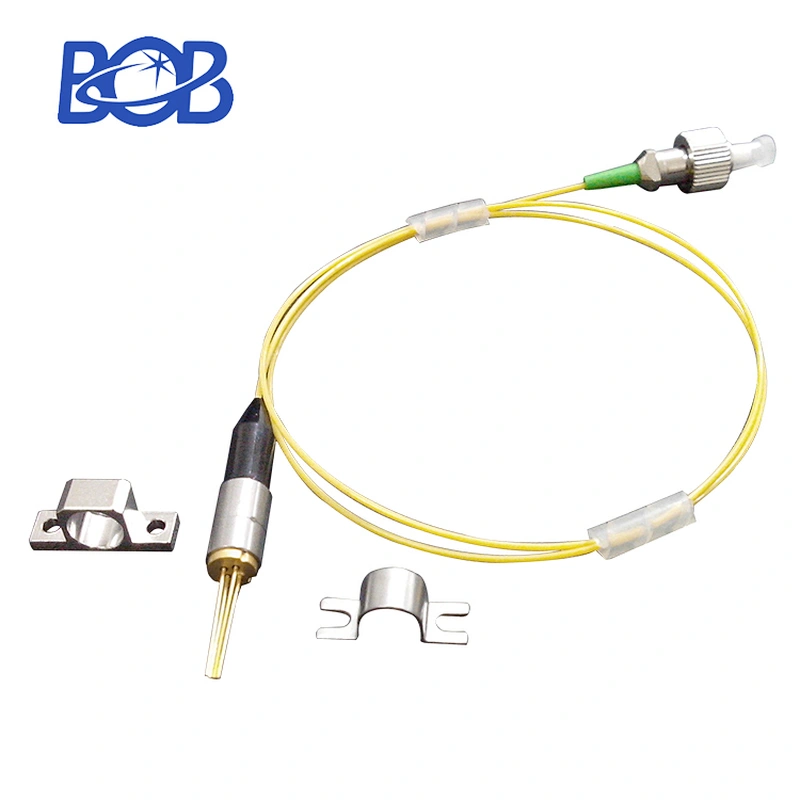

Newest laser optical 1650nm pulsed LD 30mW component
Newest laser optical 1650nm pulsed LD 30mW component

Newest laser optical 1650nm pulsed LD 30mW component

Model NO.
BOB-OFD-21
Delivery:
FOB
Supply Ability:
150000 piece / Month
Country of Origin:
For Guangdong
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Model Number:BOB-OFD-21
  • Package Type:Through Hole ,Coxial pigtail
  • Max.Forward Voltage:3.5v
  • Bandwidth:2.5GB/S
  • Pin Type:A:725
  • Chip Brand:Imported
  • Certification:Rohs CE ISO9001
  • Pigtail Length:0.5m ,1.0m
  • package:ESD
  • Chip:FP
  • item name:1650nm pulsed LD 30mW
Product Description


Newest laser optical 1650nm pulsed LD  30mW component

BOB-OFD-21 (3).jpg

1625nmPulsed Laser For OTDR



Features

High output power Pf = 30mW @ IFP = 350mA

Long wavelength λC = 1625 nm

Built-in monitor PD

Pulsed Conditions:Pulsed width (PW) = 10 μs, Duty = 1%



Applications

OTDR System/Other Sensing Probe



AbsoluteMaximumRatings

Parameter

Symbol

Min.

Max.

Unit

Pulsed Forward Current*1

IFP



500

mA

Reverse Voltage

VR



2

V

Reverse Voltage (monitor PD)

VRM



15

V

Reverse Current (monitor PD)

IFPM



2

mA

Operating Case Temperature

TC

0

60

Storage Temperature

Tstg

-40

85

Lead Soldering Temperature

Tsld



260(10s)

Relative Humidity (noncondensing)

RH



85

%

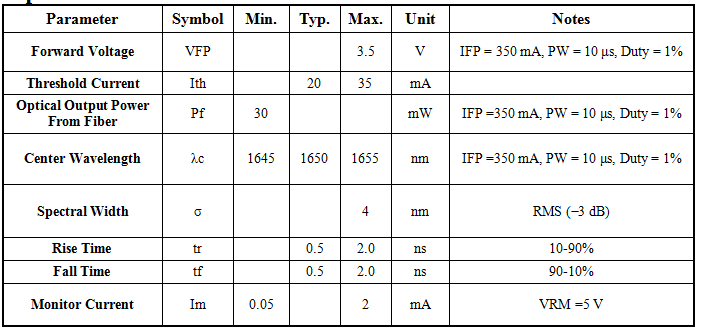

Optical & ElectricalCharacteristics


Contact us


Our Services


Related Products
Company Information


BOBLASER is a professional research and development, production and sales of laser diode ,laser sight, optical fiber laser detection, the work of the laser optical fiber devices for 20years . We have We have 10 patents, more than a dozen CE, Rohs, FDA, FC certification, etc.And Each year on research and development funds 3 million, 4-5 new products research and development, ensure constantly lead the customer markets. Our products can be OEM ,meet your special needs and our advantages and quick delivery and competitive price ,Reply within 24 hours to provide customers with timely pre-sale, sale, perfect after-sales service.
