Model NO.
BOB-VFL650-3S
Price:
USD 21.00-46.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Model Number:BOB-VFL650-3S
  • fiber fault locator:BOB-VFL650-3S
  • Central wavelength:650nm±10nm
  • Emitter type:FP-LD
  • Output power:5mw 10mw 20mw 30mw
  • Optical connector:2.5mm universal connector
  • Operating mode:Both CW and Pulse available
  • Pulse frequency:2Hz to 3Hz / 9Hz
  • Dimension:25 x 190mm
  • Weight:165g (without battery)
  • charge:USB charge

Pen-type 5mW 650nm Red Laser Fiber Optic Cable Visual Fault Locator Tester

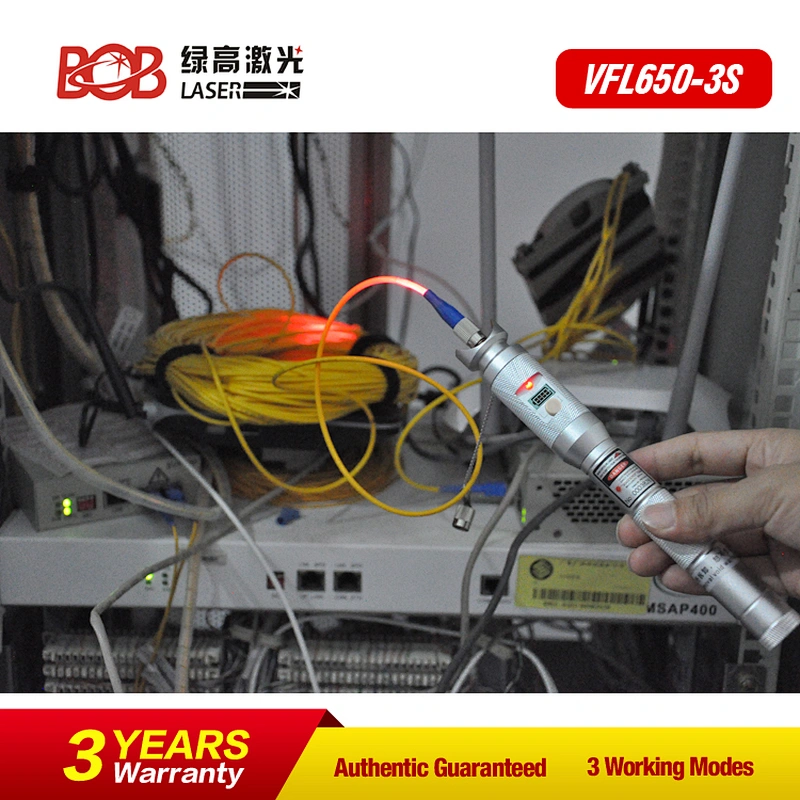

  This Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.



Applications

Maintenance in telecom, CATV

Test Lab of optical fibers

Fiber routing and continuity checking in optical networks

Other fiber optic measurements





Features



v 2.5mm universal connector,for 1.25mm connectors,

        FC(male)-LC(Female) adaptor also can be provided on request

v    Operates either in CW or Pulsed mode with constant output power

Low battery warning

Long battery life (up to 60 hours)

Drop-resistant and dust-proof design of laser head

Laser case ground design prevents ESD damage

Portable and rugged

Easy to use



  Specification









Standard Package



Model

Includes

BOB-VFL650-2S

Main unit, User Manual,Individual packing

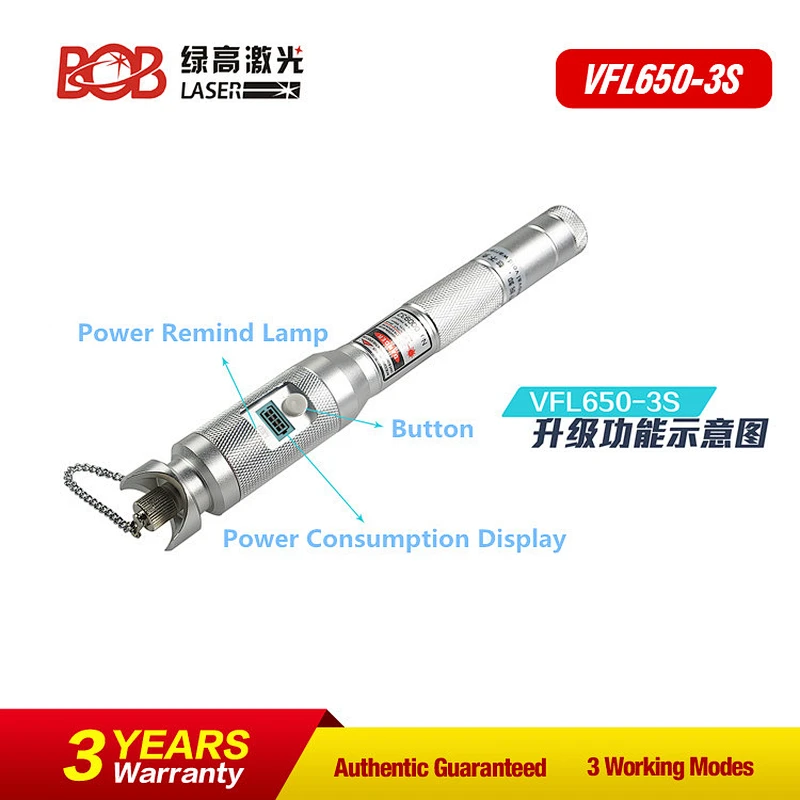

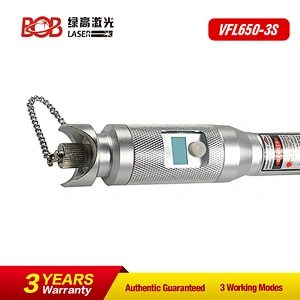

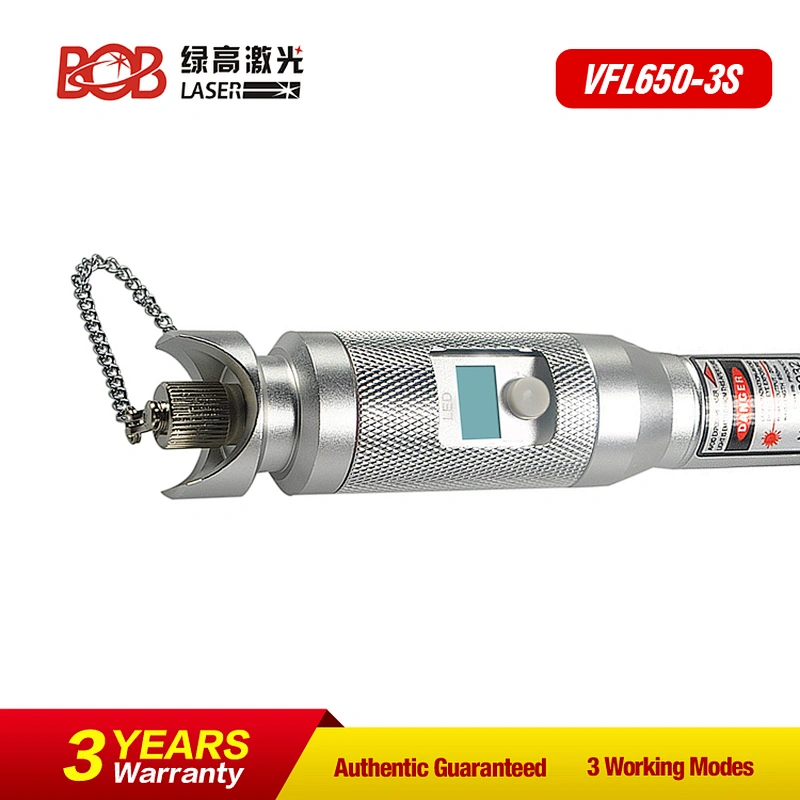

More Picture

03_.jpgLight Source Pen Type Fiber Optic Visual Fault Locator design of Screen (BOB-VFL650-3S)05.jpgLight Source Pen Type Fiber Optic Visual Fault Locator design of Screen (BOB-VFL650-3S)



Light Source Pen Type Fiber Optic Visual Fault Locator design of Screen (BOB-VFL650-3S)Light Source Pen Type Fiber Optic Visual Fault Locator design of Screen (BOB-VFL650-3S)
