- Place of Origin:CN;GUA
- Brand Name:BOB
- Model Number:BOB-VFL650-5S
- patents:Design Appearance patents
- Price:Factory price
- Type:Mini pen stype
- Color:Black
- Materia:High-end imports of Brass
- Wavelengths:650±10nm
- Output Power:5mw,10mw,20mw
- Optical Connector Type:2.5mm,1.25mm
- Operating Model:CW,Pulse
- Power Supply:2x"AAA"

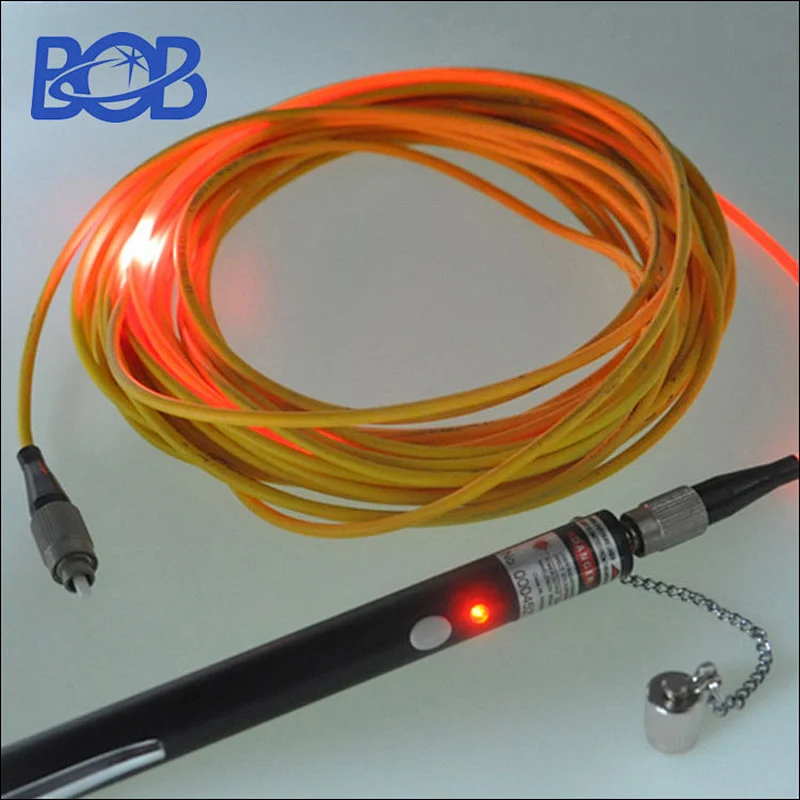

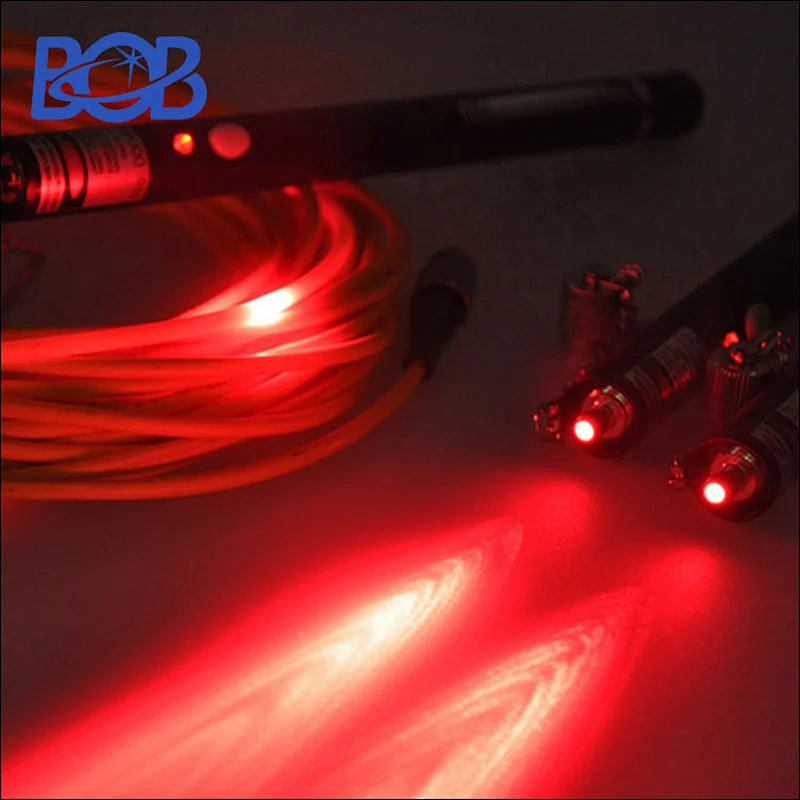

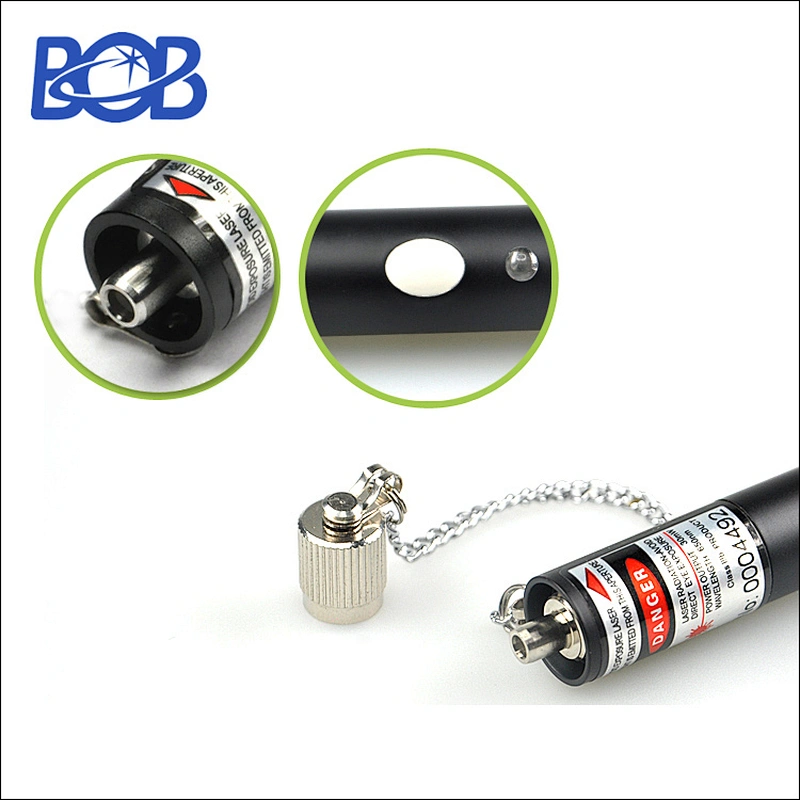

Optical fiber Identifier Visual Fault Locator 20mw 20km laser range with Design Appearance patents
| BOB-VFL650-5S | |||
| Brand Name | BOB | ||
| Type | Mini pen stype | ||
| Materia | High-end imports of Brass | ||
| Wavelengths | 650±10nm | ||
| Optical Connector Type | 2.5mm,1.25mm | ||
| Operating Model | CW,Pulse | ||
| Power Supply | 2x"AAA" | ||
| Output Power | 5mw | 10mw | 20mw |
| (Laser range) | (>5km) | (>10km) | (>20km) |
| battery life | Long battery life (up to 60 hours) .Low battery warning | ||
| Optical connector | 2.5mm universal connector,for 1.25mm connectors, FC(male)-LC(Female) adaptor also can be provided on request | ||
| Operating mode | Operates either in CW or Pulsed mode with constant output power | ||
| Feature | Drop-resistant and dust-proof design of laser head | ||
| Laser case ground design prevents ESD damage | |||
| Portable and rugged | |||
| Easy to use | |||
| Application | Maintenance in telecom, CATV | ||
| Test Lab of optical fibers | |||
| Fiber routing and continuity checking in optical networks | |||
| Other fiber optic measurements | |||
| Funtion | Find breakpoints, poor connections, bending or cracking in fiber optic cables | ||
| Find faults in an OTDR dead zone | |||
Is used for end-to-end visual fiber identification. | |||
BOBLASER is a professional research and development, production and sales of laser diode ,laser sight, optical fiber laser detection, the work of the laser optical fiber devices for 20years . We have We have 10 patents, more than a dozen CE, Rohs, FDA, FC certification, etc.And Each year on research and development funds 3 million, 4-5 new products research and development, ensure constantly lead the customer markets. Our products can be OEM ,meet your special needs and our advantages and quick delivery and competitive price ,Reply within 24 hours to provide customers with timely pre-sale, sale, perfect after-sales service.
