Model NO.
BOB-VFL650-5 10mw
Price:
USD 5.00-50.00 / pieces
Delivery:
FOB
Minimum order quantity:
5 pieces
Supply Ability:
2000 pieces / Week
Country of Origin:
guangdong
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Model Number:BOB-VFL650-5 10mw
  • Name::visual fualt locator
  • guarantee period::Three years warranty
  • Output::10mw
  • Central wavelength::650nm
  • Emitter type:: FP-LD
  • Operating model ::Both CW and Pulse available
  • Distance:10km
  • Application:FTTH System
  • Material:Aluminum Alloy
  • Certification:CE RoHS


Description

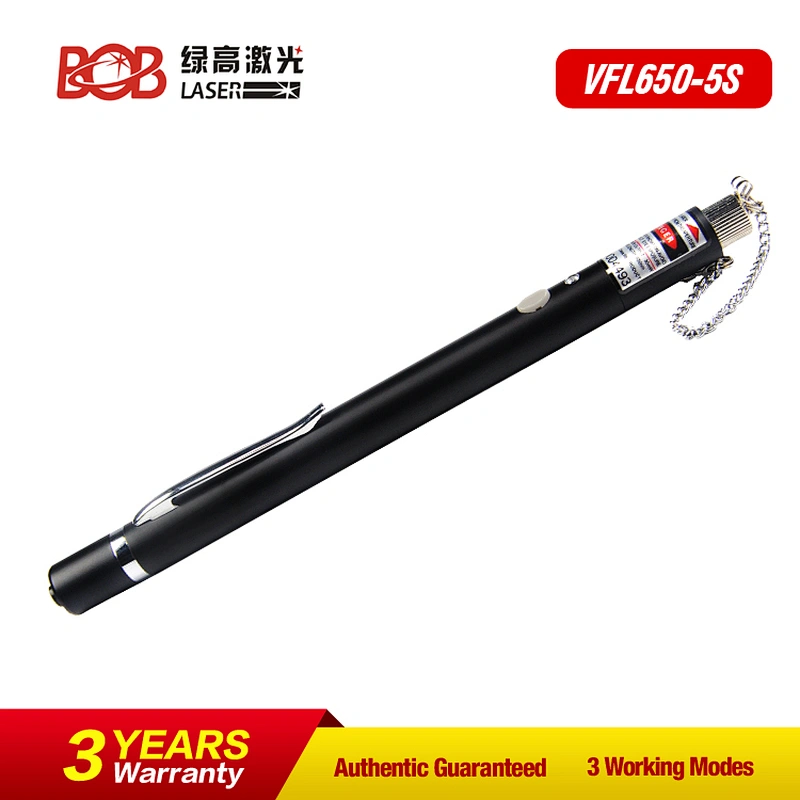

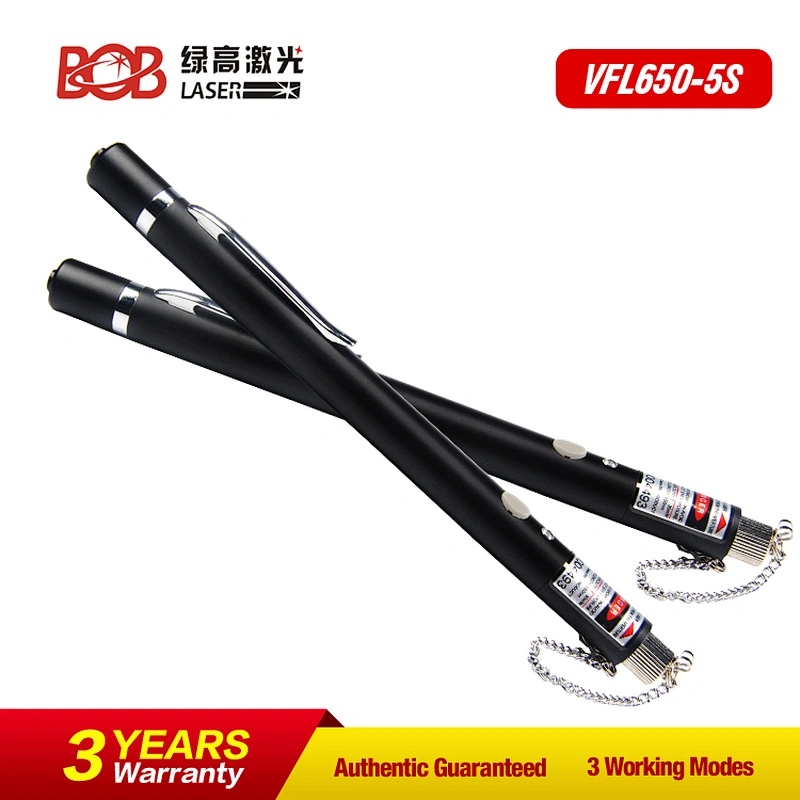

The pen- type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. And it is the essential test tool for the FTTH project. This visual fault locator is with so many advantages, such as long woking life, rugged, portable, beautiful appearance and so on. It is the best choice for the field personnel.



Feature





1.2.5mm universal connector,for 1.25mm connectors,FC(male)-LC(Female) adaptor also can be provided on request

2.Operates either in CW or Pulsed mode with constant output power

3.Low battery warning

4.Long battery life (up to 60 hours)

5.Drop-resistant and dust-proof design of laser head

6.Laser case ground design prevents ESD damage

7.Portable and rugged

8.Easy to use





Funtion



1.Find breakpoints, poor connections, bending or cracking in fiber optic cables

2.Find faults in an OTDR dead zone

3.Is used for end-to-end visual fiber identification.





 Application



1.Maintenance in telecom, CATV

2.Test Lab of optical fibers

3.Fiber routing and continuity checking in optical networks

4.Other fiber optic measurements

BOB-VFL650-5S.jpgVFL650--5S_02.jpgVFL650--5S_04.jpgVFL650--5S_05.jpgVFL650--5S_06.jpgVFL650--5S_07.jpgVFL650--5S_10.jpgVFL650--5S_11.jpgVFL650--5S_12.jpg

Model

BOB-VFL650-5S

Central wavelength

650nm±10nm (635nm is available on request)

Emitter type

FP-LD

Output power

5mw

10mw

20mw

30mw

Laser Range

≥5km

≥10km

≥20km

30km

Optical connector

2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request

Operating mode

Both CW and Pulse available

Pulse frequency

2Hz to 3Hz / 9Hz

Power supply

2AA alkaline batteries

Battery

 LR6 AA alkaline battery

Operating temperature

-20°C to 60°C

Storage temperature

-40°C to 85°C

Dimension

16x 176mm

Weight

106g (without battery)



Method of use





1Screw the end cap from the pen, the battery will be prepared into the pen, battery cathode to the end cap, the positive on the pen body is positive;(note: please do not turn pen and pencil tail into the battery)
2Put the pen and pencil body connection installed, open the dust cap, press the control switch one time, observe the interface has a red light, luminous tube on at the same time;(note don't eyes were light interface, so as not to damage the eye)
3. Press the control switch again, observe the light into a pulse mode, the indicator light-emitting tube and out of sync pulse light;(pulse frequency in 2-3 hz or 9 hz)
4. Press the control switch again, light source closed, no light output, at the same time indicator light pipe out;(switch mode to: continuous - pulse - closed - continuous cycle mode)
5When detecting insert tested optical fiber optical interface, press the control switch at the same time, choose the output light work mode (continuous or pulse);
6After use, build the dust cap, do not use for a long time, please take out the battery, in order to avoid battery rot, damage the light source.





Maintenance and matters needing attention





1. Laser and harmful, especially to pay attention to protect the eyes, when laser works,  avoid to irradiate the eyes with laser directly;
2. In generally, the higher the temperature, the shorter the life of laser, when used to avoid high temperature working environment;
3. The work of laser optical fiber head should be cleaned;
4. When used, the optical interface and the interface needs to detect light and light pull plug;
5. Don't use the light source, would you please put dust cap to avoid dust fall;
6. Should remove the battery when not in using;
7. Please do not remove the end cap and any part of the dust cap, remove shall not be responsible for damage caused.
