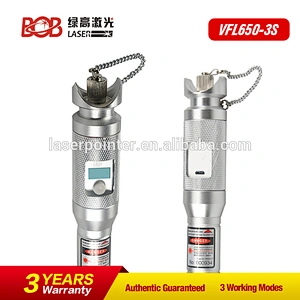

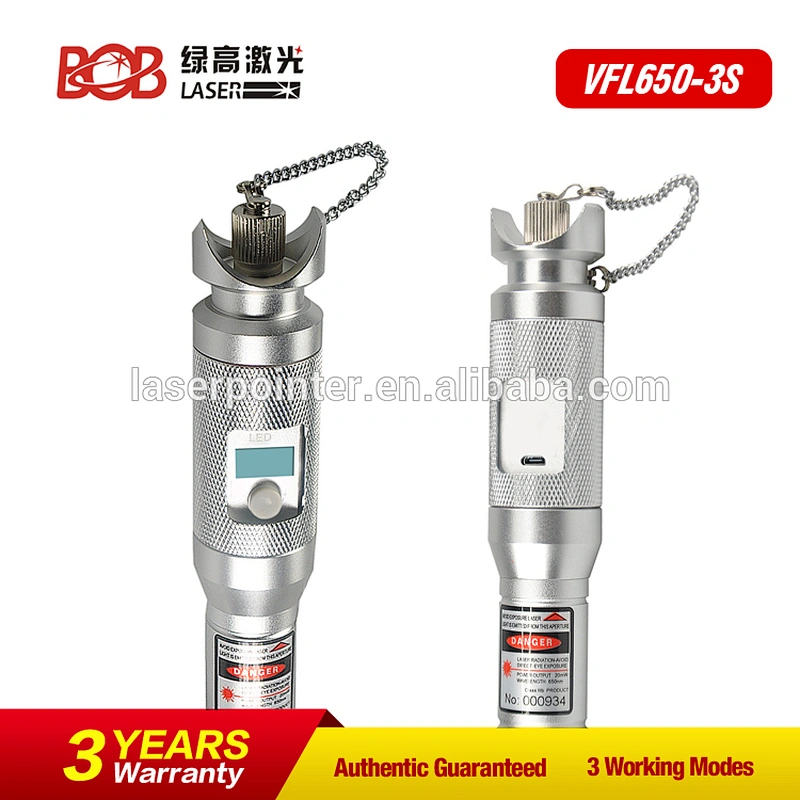

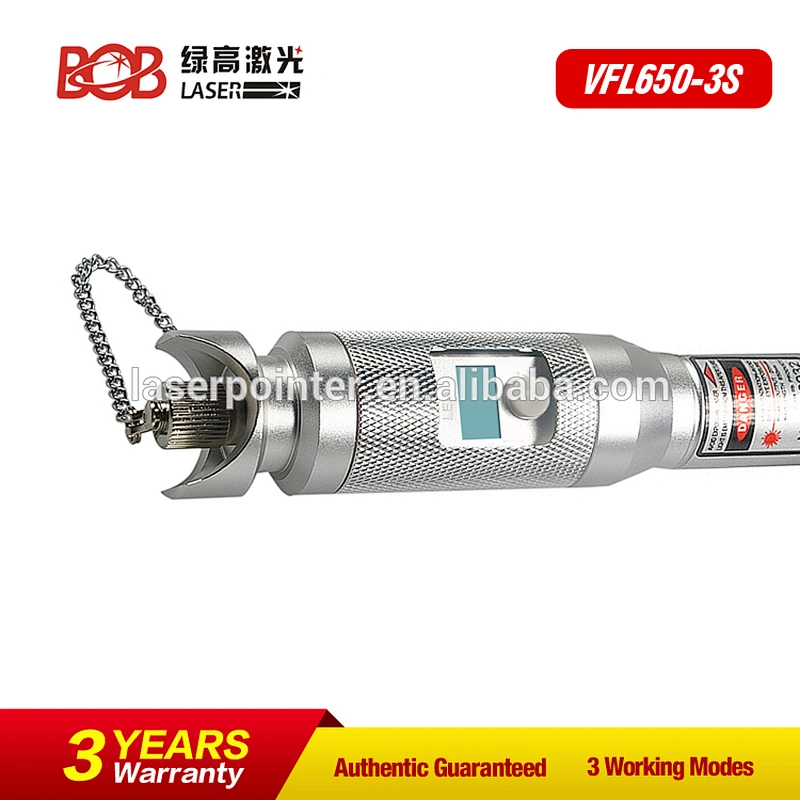

Visual Fault Locator Fiber checker 650 nm (ST, SC or FC) 10mW (BOB-VFL650-3S)

• Place of Origin:CN;GUA
• Brand Name:BOB
• Model Number:BOB-VFL650-3S
• fiber fault locator:BOB-VFL650-3S
• Central wavelength:650nm±10nm
• Emitter type:FP-LD
• Output power:10mw
• Optical connector:2.5mm universal connector
• Operating mode:Both CW and Pulse available
• Pulse frequency:2Hz to 3Hz / 9Hz
• Dimension:25 x 152mm
• Weight:165g (without battery)

Fiber test equipment (BOB-VFL650-3S)

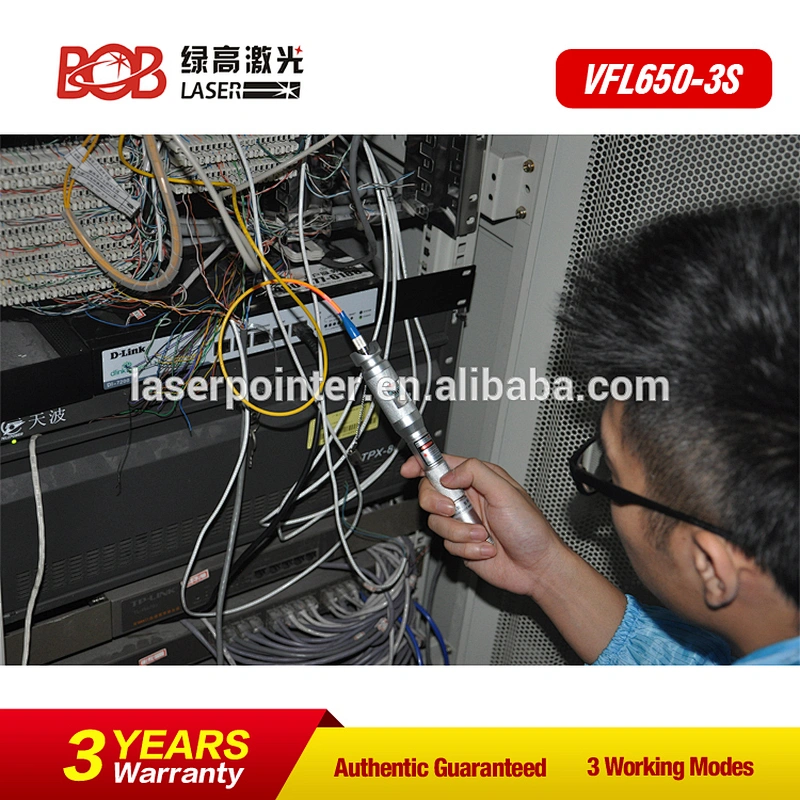

         This Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.

Applications

v Maintenance in telecom, CATV

v Test Lab of optical fibers

v Fiber routing and continuity checking in optical networks

v Other fiber optic measurements

Features

v 2.5mm universal connector,for 1.25mm connectors,

        FC(male)-LC(Female) adaptor also can be provided on request

v    Operates either in CW or Pulsed mode with constant output power

v Low battery warning

v Long battery life (up to 60 hours)

v Drop-resistant and dust-proof design of laser head

v Laser case ground design prevents ESD damage

v Portable and rugged

v Easy to use

 Specification

Standard Package

More Picture
