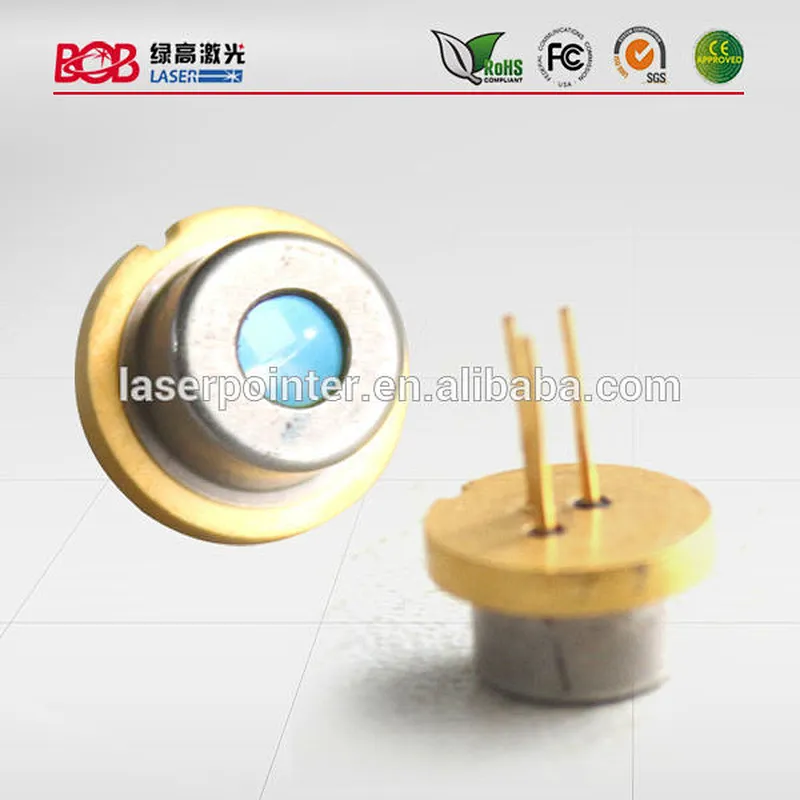

Wholesales 405nm DVD Laser Diode 250nw
Wholesales 405nm DVD Laser Diode 250nw

Wholesales 405nm DVD Laser Diode 250nw

Model NO.
BOB405T250
Price:
USD 1.00-55.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Max. Reverse Current:standard
  • Max. Forward Voltage:6V
  • Package Type:Surface Mount
  • Type:laser diode
  • Max. Forward Current:170mA
  • Max. Reverse Voltage:2V
  • Model Number:BOB405T250
  • Name:Wholesales 405nm DVD Laser Diode 250nw
  • package:TO-38
  • power:250mw
  • wavelength:405nm
  • application:Indicator, Pointer, DVD, Laser printing
  • Operating temperature:-10~+55 degree
  • Storage Temperature:-45~+85 degree
  • color:blue violet
  • type:laser diode
  • Certification:ISO9001, RoHS, CE, JQA, FDA

Wholesales 405nm DVD Laser Diode  250nw



Application:

Indicator

Pointer

DVD

Laser printing



 BOB405T250  405nm 250mw laser diode TO-18 3.8MM



Item

Condition

Symbol

Min

Typ.

Max

Unit

Threshold Current

-

Ith

-

50

70

mA

Operating Current

Po=200mW

Iop

-

150

200

mA

Operating Voltage

Po=200mW

Vop

-

5.0

5.5

V

Slope Efficiency

Po=200mW

η

0.8

1.2

-

mW/mA

FWHN Beam Divergence

Parallel

Po=200mW

θ//

6

8

12.0

deg



Perpendicular

Po=200mW

θ⊥

15

18

22.0

deg

Parallel Deviation Angle

Po=200mW

Δθ//

-2

-

2



Perpendicular Deviation Angle

Po=200mW

Δθ⊥

-3

-

3

deg

Emission Point Accuracy

Po=200mW

ΔxΔyΔz

-80

-

80

deg

Lasing Wavelength

Po=200mW

λp

400

405

410

mA











if you want konw more.  You can leave a message to me.

this our company's website http://boblaserdiode.en.alibaba.com/

 12345

Our  Product :

We company mainly produces the following product package of the semiconductor laser: 405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm, 830nm, 850nm, 915nm, 940nm, 980nm, 1064nm, 1310nm, 1550nm,various   power specifications (1mW to 10W),TO -5 TO-3,C-Mount as well as CT-Mount,  the F-Mount   and  a  variety  of  purposes (communication, pumps, medical and beauty, display, printing, etc.) .semiconductor lasers.


We company has passed ISO9001, European CEcertified,RoHS certification of the European environmental protection,the U.S. FDA, Japan JQA. BOB brand in the international community gained a high reputation in the market.
