635nm 500mw high power red laser diode manufacture
635nm 500mw high power red laser diode manufacture

635nm 500mw high power red laser diode manufacture

Model NO.
BOB635T500
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
15000 pieces / Week
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB
  • Max. Forward Voltage:2.5V
  • Package Type:Surface Mount
  • Type:Laser Diode
  • Max. Forward Current:105mA
  • Model Number:BOB635T500
  • package:TO-18,C-Mount,F-Mount
  • power:5mw,10mw,20mw,30mw,350mw,500mw
  • wavelength:635nm
  • application:Indicator,Pointer,Scanning,Medical equipment

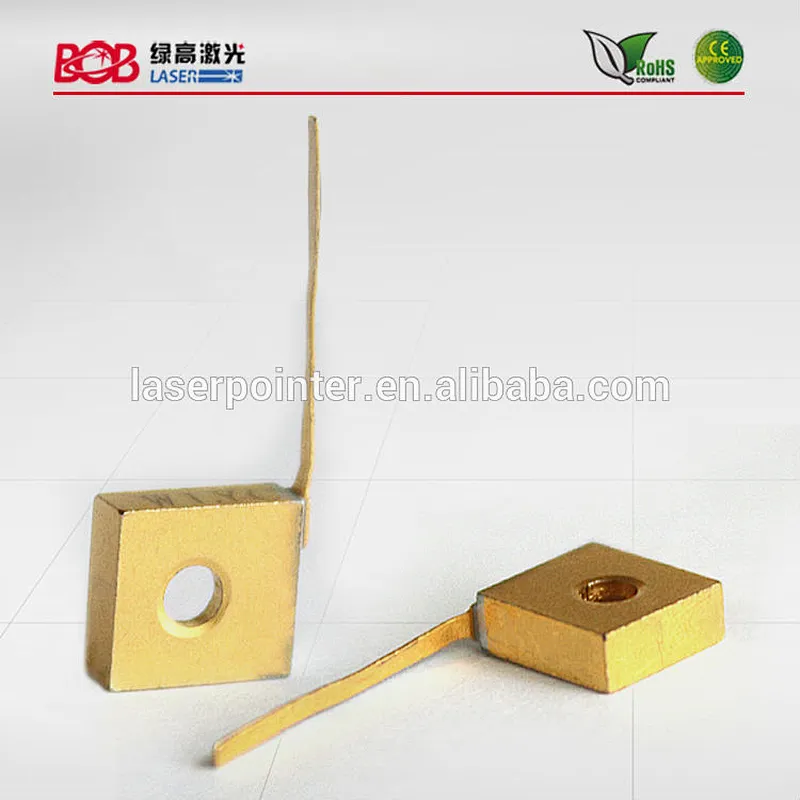

                                            635nm 500mw laser diode C-Mount F-Mount





Application:

Indicator
Pointer

Scannning
Medical photograhy



BOB635T500 635nm 500mw laser diode C-mount F-mount



Parameter

Min.

Typ.

Max.

Units

Threshold Current

-

50

60

mA

Operating Current

-

90

105

mA

Operating Voltage

-

2.3

2.5

V

Slop Efficiency

0.5

0.75

-

mW/mA

Monitor Current

0.05

0.16

0.5

mA

Beam Divergence(Parallel)

7

8.5

11

deg.

Beam Divergence(Perpendicular)

-

30

35

deg.

Lasing Wavelength

630

640

645

nm


If you want konw more.  You can leave a message to me.

this our company's website http://boblaserdiode.en.alibaba.com/

 12345

Our  Product :

We company mainly produces the following product package of the semiconductor laser: 405nm, 445nm, 635nm, 638nm, 650nm,780nm, 808nm, 830nm, 850nm, 915nm, 940nm, 980nm, 1064nm, 1310nm, 1550nm,various   power specifications (1mW to 10W),TO -5 TO-3,C-Mount as well as CT-Mount,  the F-Mount   and  a  variety  of  purposes (communication, pumps, medical and beauty, display, printing, etc.) .semiconductor lasers.


We company has passed ISO9001, European CEcertified,RoHS certification of the European environmental protection,the U.S. FDA, Japan JQA. BOB brand in the international community gained a high reputation in the market.
