Model NO.
BOB-OFD-06
Price:
USD 1.00-500.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Month
Country of Origin:
GZ
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB LASER
  • Max. Reverse Current:10 UA
  • Max. Forward Voltage:1.0V
  • Package Type:Through Hole
  • Type:Laser Diode
  • Max. Forward Current:150mA
  • Max. Reverse Voltage:0~1000V
  • Model Number:BOB-OFD-06
  • Chip Brand:Imported
  • Bandwidth:2.5G-10G
  • Shape:4pin
  • Application:CATV/GSM/RF
  • Warranty:2Year
  • Chip:DFB
  • Wavelength:1310nm,1550nm
  • Power Range:1mW,2mw,3mw,1-10mw ,1-8mw

.jpg

3_01

Product Description

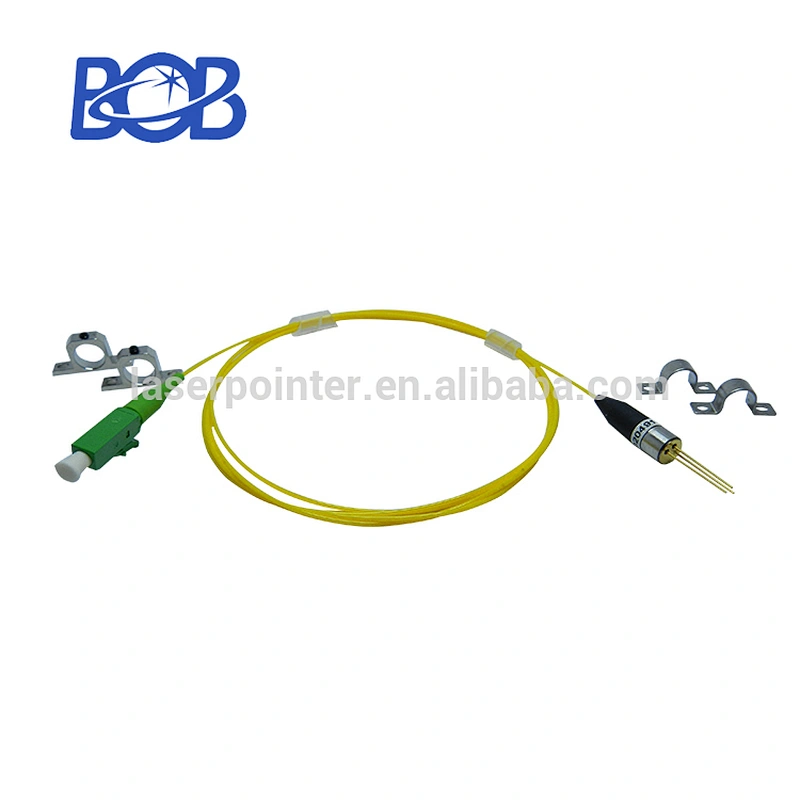

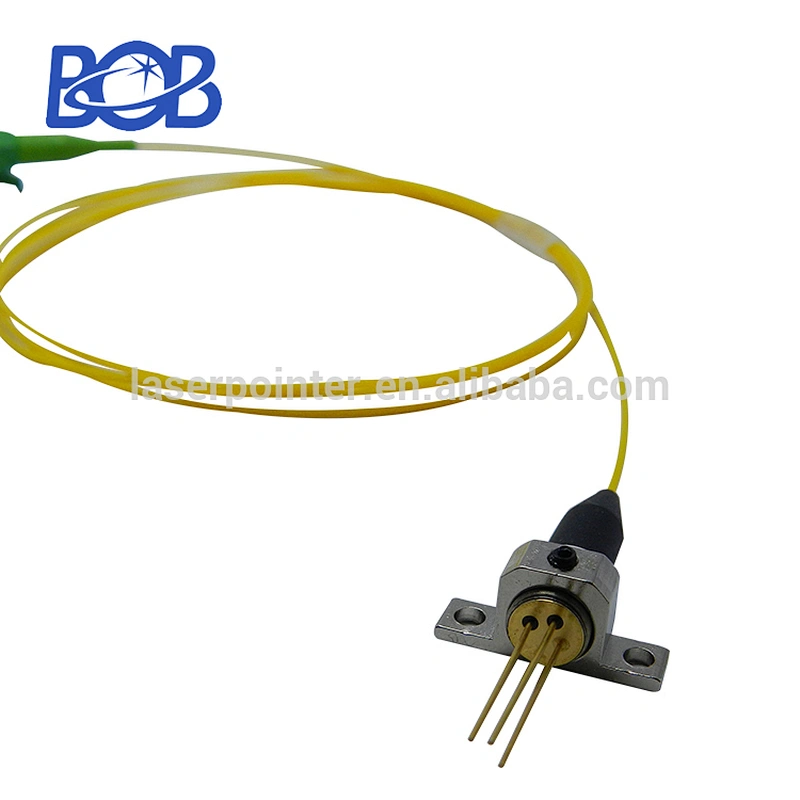

1000um PD InGaAs Photodetector

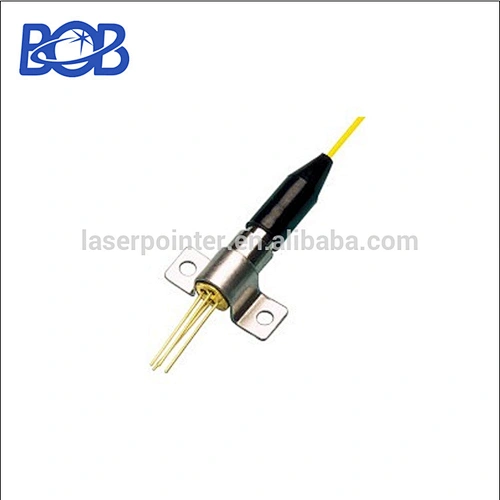

InGaAs Fiber Pigtailed Detector

Features

High response,flat structure of InGaAs PIN detector
Low capacitance and low dark current
Operating wavelength of 1100~1650nm
Single-mode fiber coaxial package



Applications

CATV Transmission Optical Receiver
RF Transmission Optical Receiver
Other Analog Receiver/ Power Detector



Absolute Maximum Ratings

ParameterSymbol RatingsUnit
Storage TemperatureTstg-40~+100
Operating TemperatureTop-40~+85
Max Output PowerPmax+6dBm
Operating Voltage Vop5 V
PD Reverse VoltageVR(PD)25V
Soldering Temp-260
Soldering Time-10S

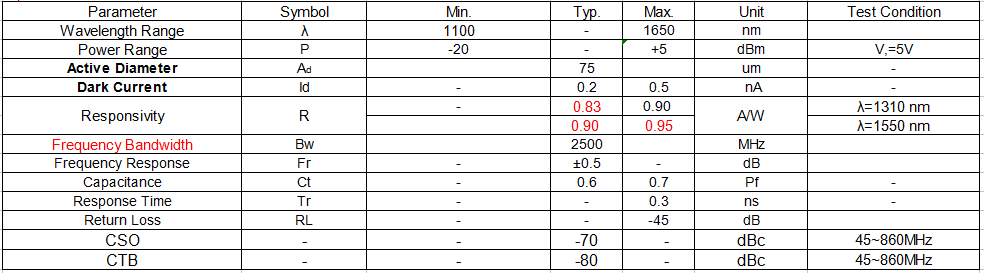

Optical & Electrical Characteristics

Related Products
Application :CATV/GSM/RF



Application :FTTH/Digital


Application :OTDR


Application :Instruments and Meters
