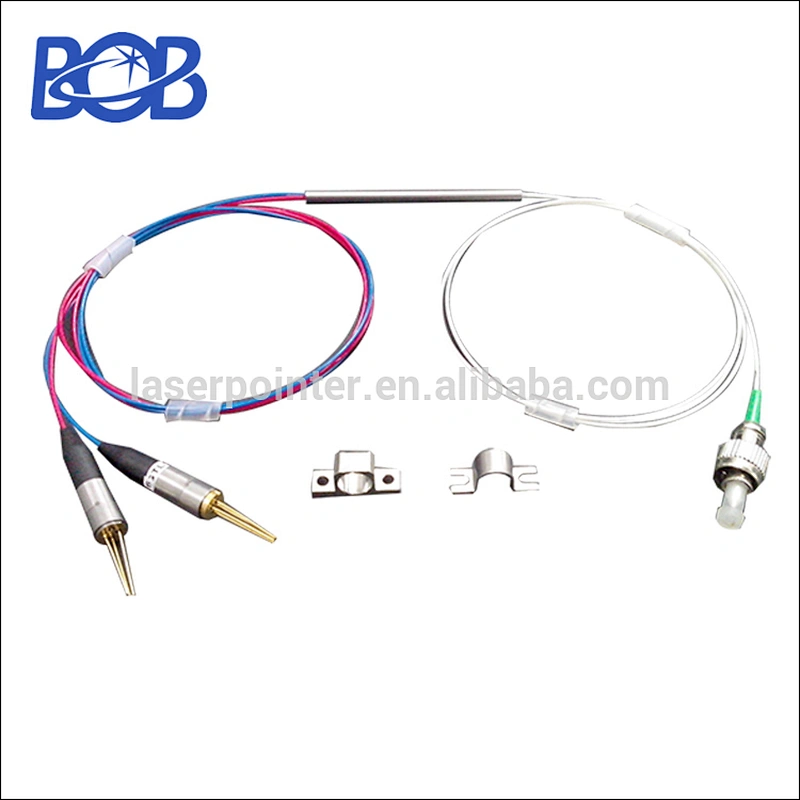

Analog photodetector/photodiode/pin diode With pigtailed with pigtail
Analog photodetector/photodiode/pin diode With pigtailed with pigtail
Analog photodetector/photodiode/pin diode With pigtailed with pigtail
Analog photodetector/photodiode/pin diode With pigtailed with pigtail
Analog photodetector/photodiode/pin diode With pigtailed with pigtail

Analog photodetector/photodiode/pin diode With pigtailed with pigtail

Model NO.
BOB-OFD-08
Price:
USD 1.00-500.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
15000 piece / Month
Country of Origin:
GZ
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:BOB LASER
  • Max. Reverse Current:standard
  • Max. Forward Voltage:standard
  • Package Type:Through Hole
  • Type:Laser Diode
  • Max. Forward Current:standard
  • Max. Reverse Voltage:standard
  • Model Number:BOB-OFD-08
  • Chip Brand:Imported
  • Bandwidth:2.5G-10G
  • Shape:4pin
  • Application:CATV/GSM/RF
  • Wavelength:1310nm,1550nm
  • Warranty:2Year
  • Chip:DFB
  • Power Range:1mW,2mw,3mw,1-10mw ,1-8mw

.jpg

3_01

Product Description


WDM Laser&PIN 1310&1550

Description

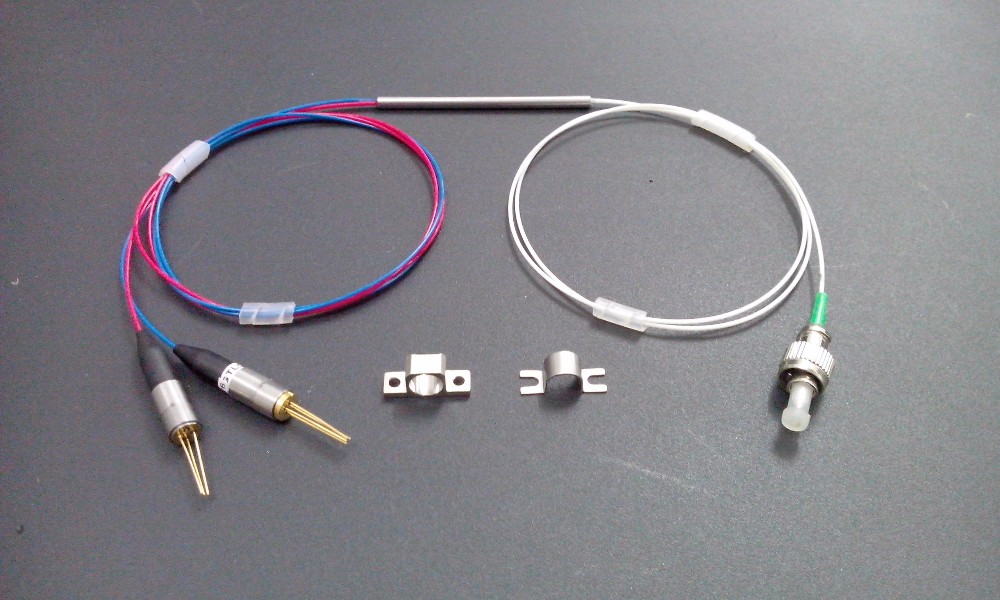

Coaxial Laser and Detector with WDM Series use InGaAsP/InP MQW DFB chip.They have features as follow:low noise,low distortion,high isolation excellent,reliability,high linearity and wide communication band.The laser diode is mounted into a coaxial package with single mode pigtailed fiber, LC/UPC receptacle or customization.

Features

1.High-reliability MQW DFB laser chips
2.Low noise, low distortion, and low threshold current
3. Integrated optical isolator
4. Fiber pigtailed package

Application

1.CDMA/GSM Transmission System
2. Other Analog Transmission System

Absolute Maximum Ratings

ParameterSymbolMin.Typ.Max.Unit
Reverse Voltage(LD)Vrl--2V
Forward Current (LD)LfL--150mA
Reverse Voltage (monitor)Vrl--15V
Reverse Current (monitor)Lrp--2mA
Input Optical Power(PIN)Pin--6dBm
Soldering Temperature(<10sec.)Stemp--260
Storage TemperatureTstg-40-85
Operating TemperatureTop-20-85

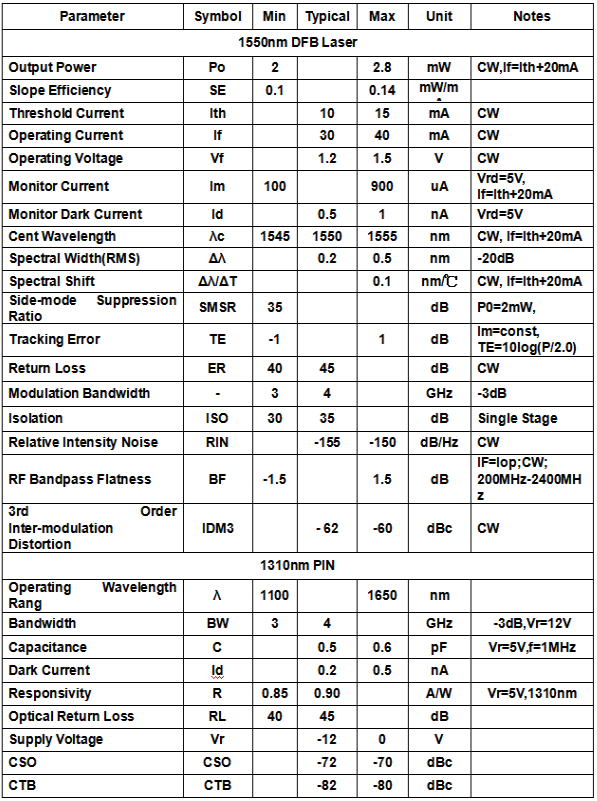

Optical & Electrical Characteristic
